CN20 Standard

The base we can build upon together

CN20 STANDARD

Standard 20’ × 8’ unit

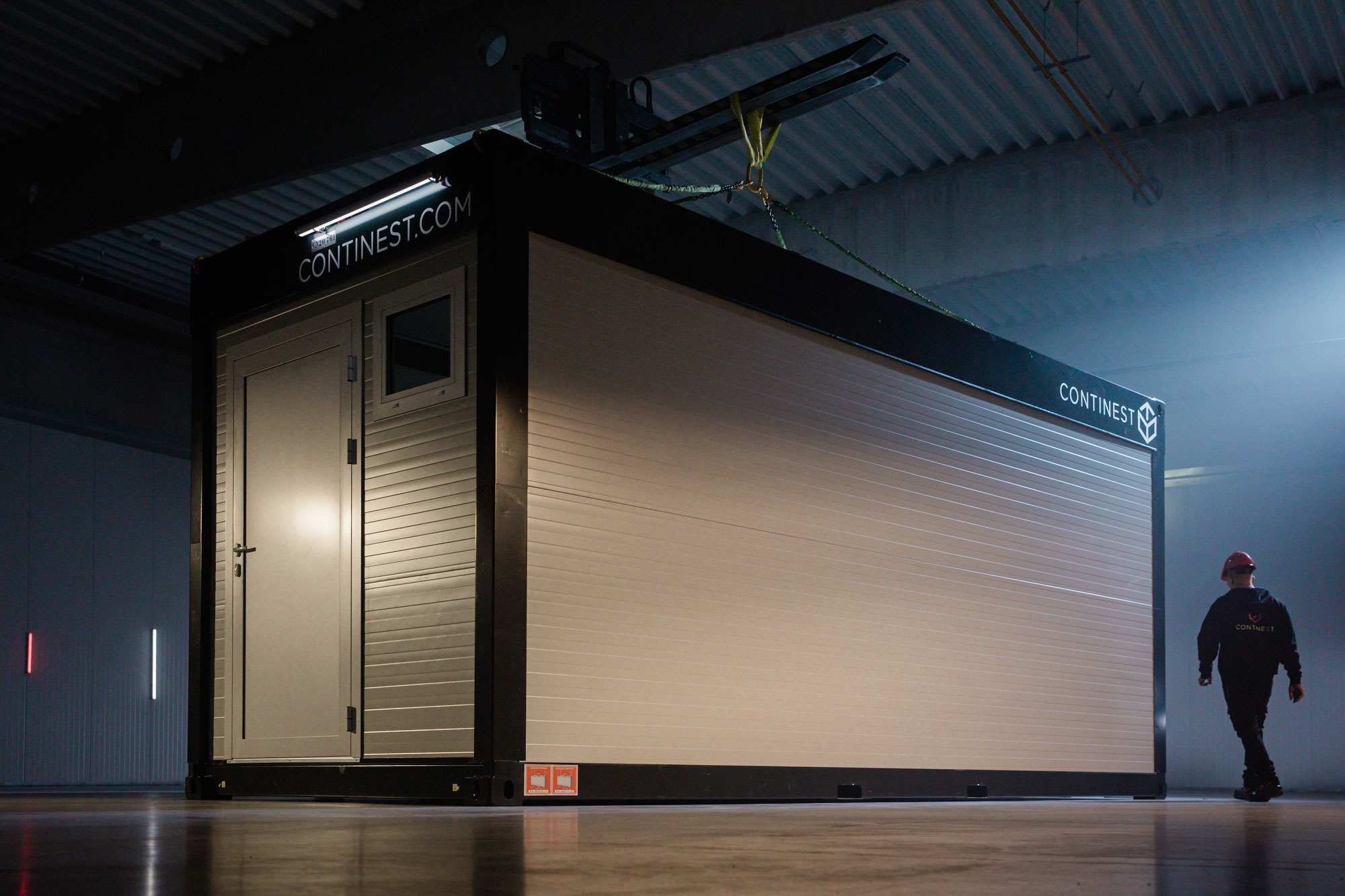

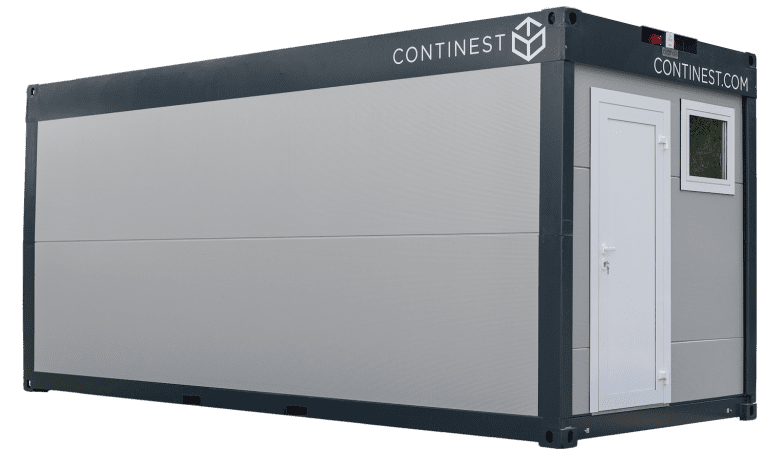

The CN20 is our standard 20 ft unit and is the base of all the Continest solutions design technology. Whether you want a rapidly deployable office or communication center or you want a superior quality solution for shelter or accommodation, the CN20 is here for you.

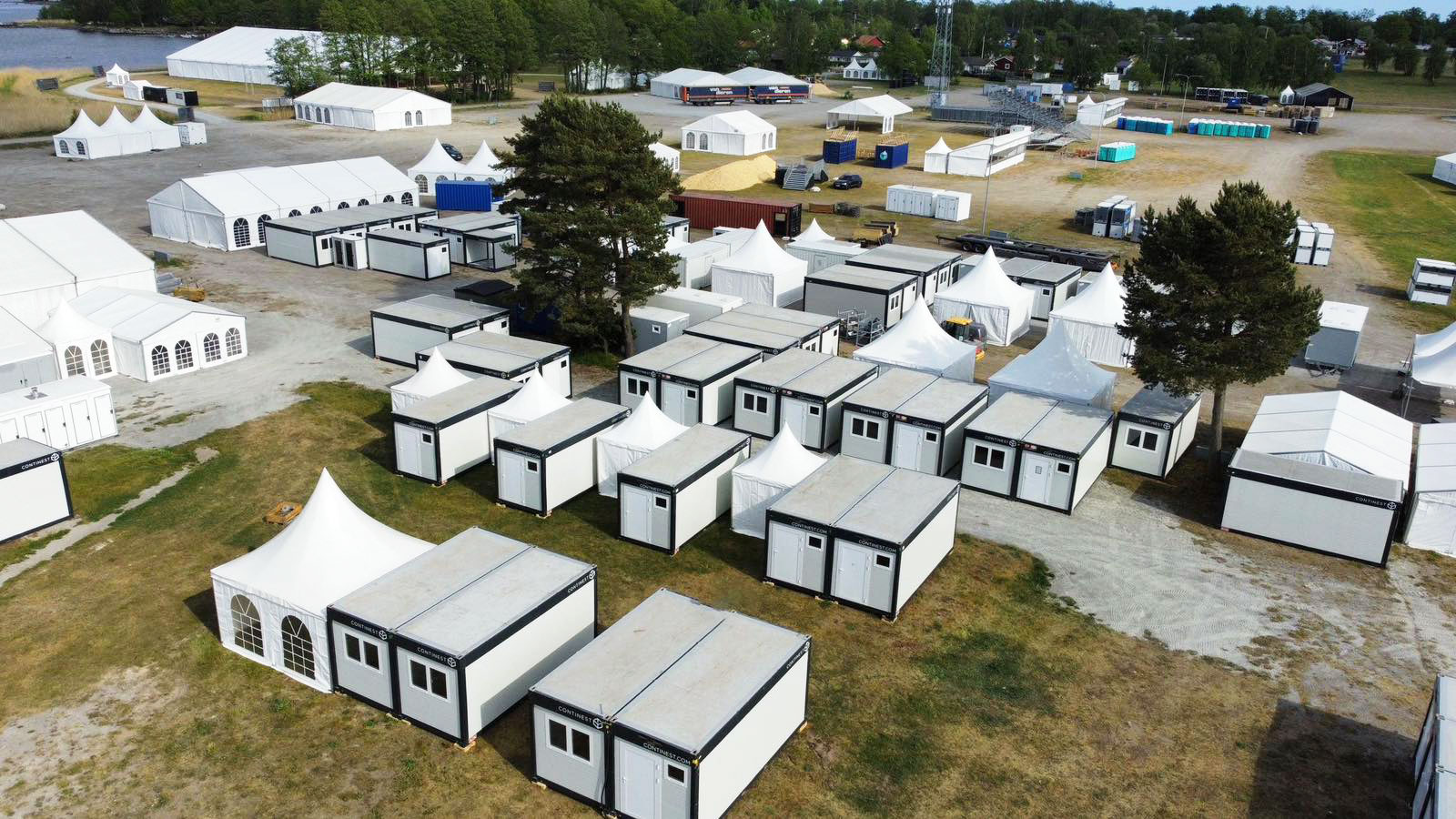

The product has served the World Ski Championships in Norway, built as a hospital in Uganda, and has travelled all around the globe from Australia to the UAE.

Continest is a market-leading foldable container solution, specially developed for the continual relocating of infrastructure as needed for various purposes including handling large crowds, lodging, office/meeting, cash desk and storage.

Our most popular container solution, the CN20 combines all the benefits of a 20’ ISO fixed frame container with the advantages gained from foldability

The units can be safely stacked on top of each other for storage and transport, lowering costs and emissions by up to 80%

The CN20 design principles serve as the bedrock foundation for the development of new CN products as we continue innovating

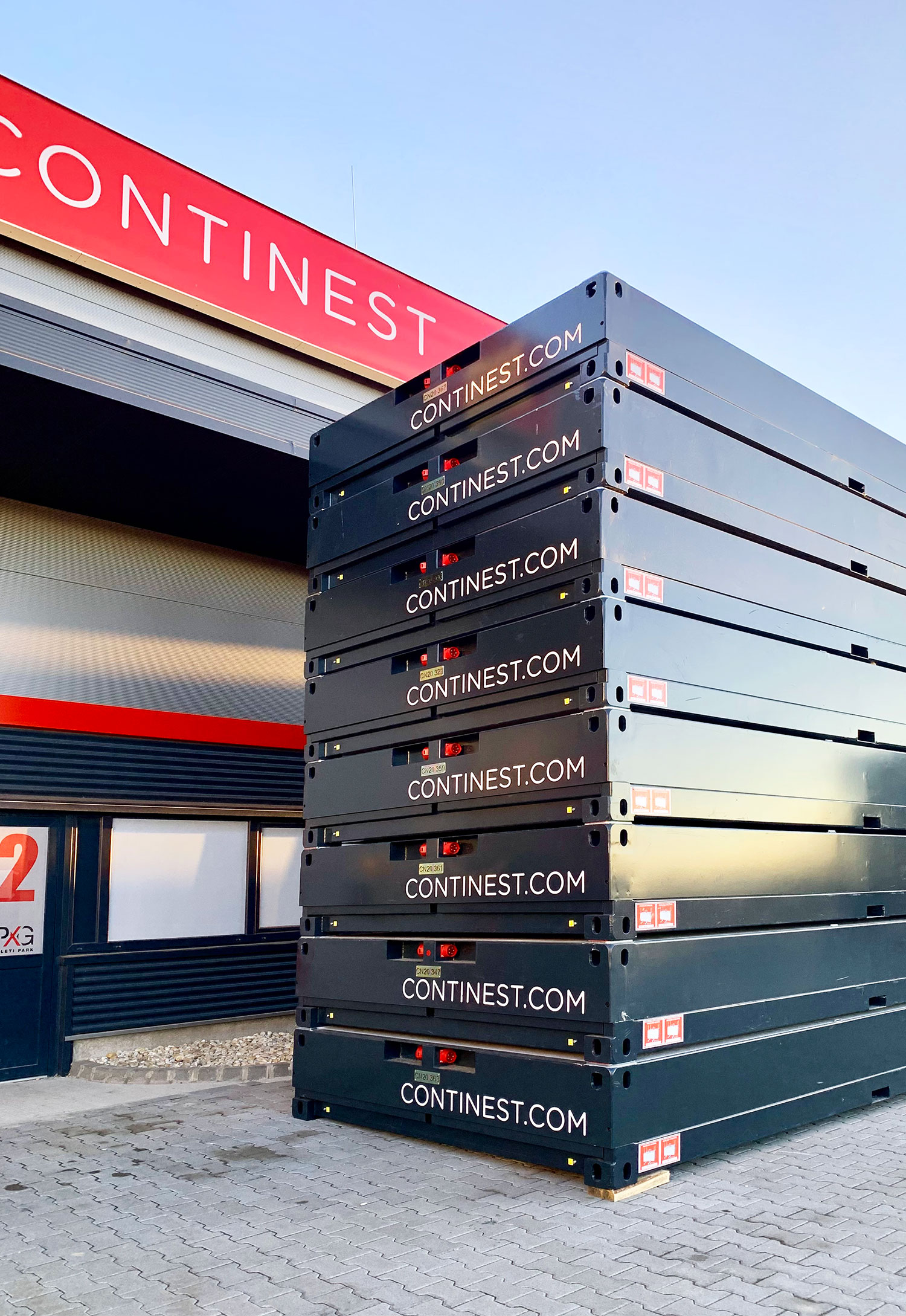

STACKABLE

10 units can be loaded
and stacked on a standard trailer

TRADEMARK NO. 227509, PATENT REGISTRATION NO. WO 2019/064036
NATO STOCK NUMBER CN+20: 5410-51-000-9514, UNGM #739156 I NCAGE CODE: 2054V
CN20 STANDARD

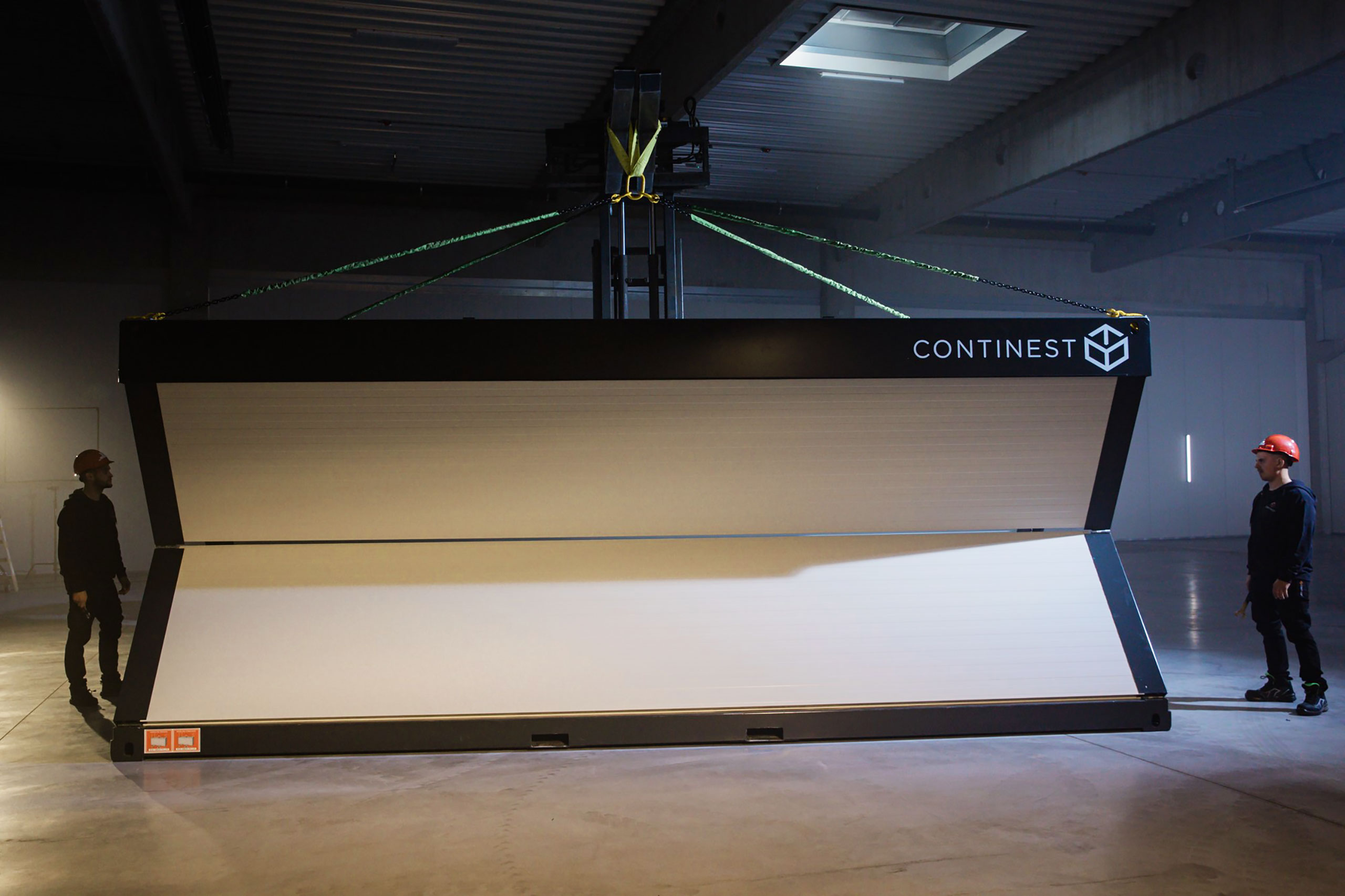

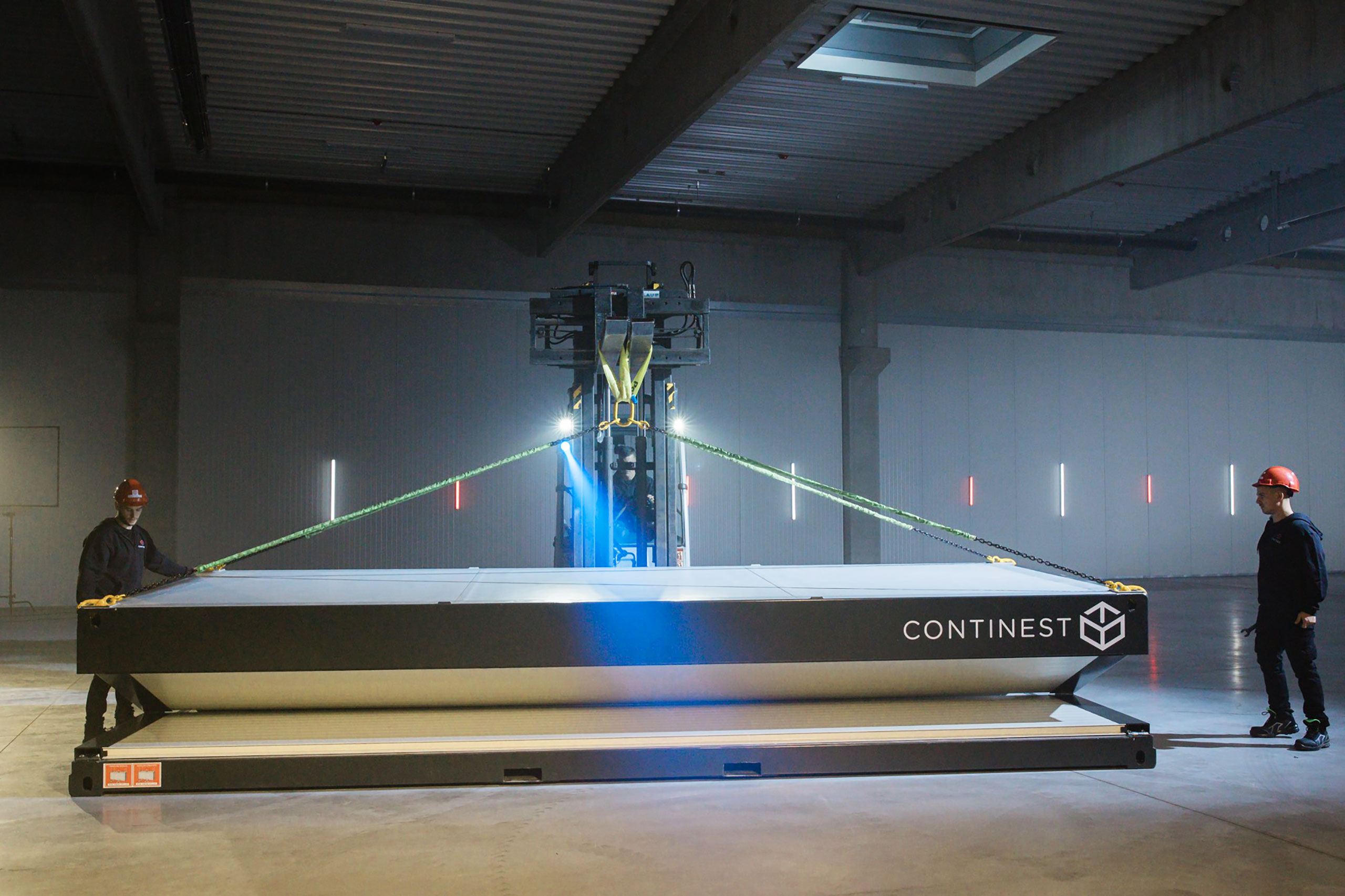

Fast deployment

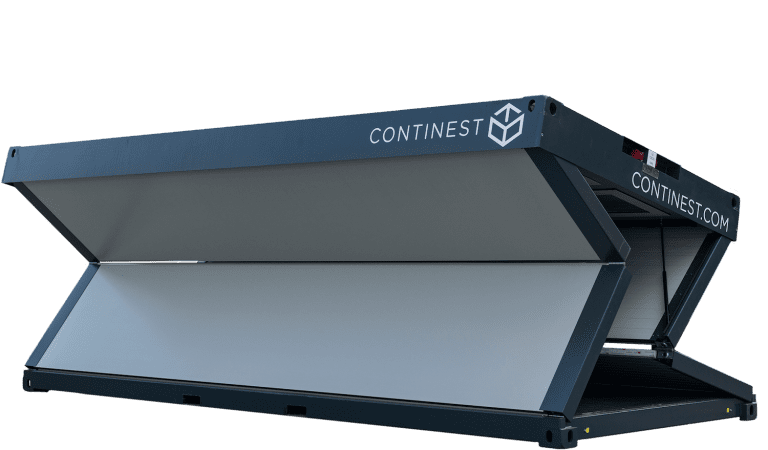

QUICK AND EASY SET UP AND TEARDOWN

On levelled surface 5–10 minutes/container

STAFF NEEDED

1 crew + 1 operator (forklift)

SET UP AND TEARDOWN ARE EASY

Staff training is provided by Continest

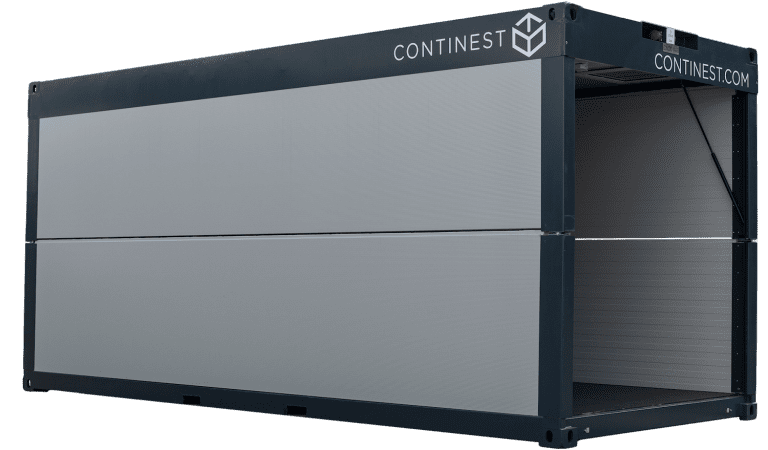

20 ft LONG STANDARD UNIT

CN20 Standard dimensions

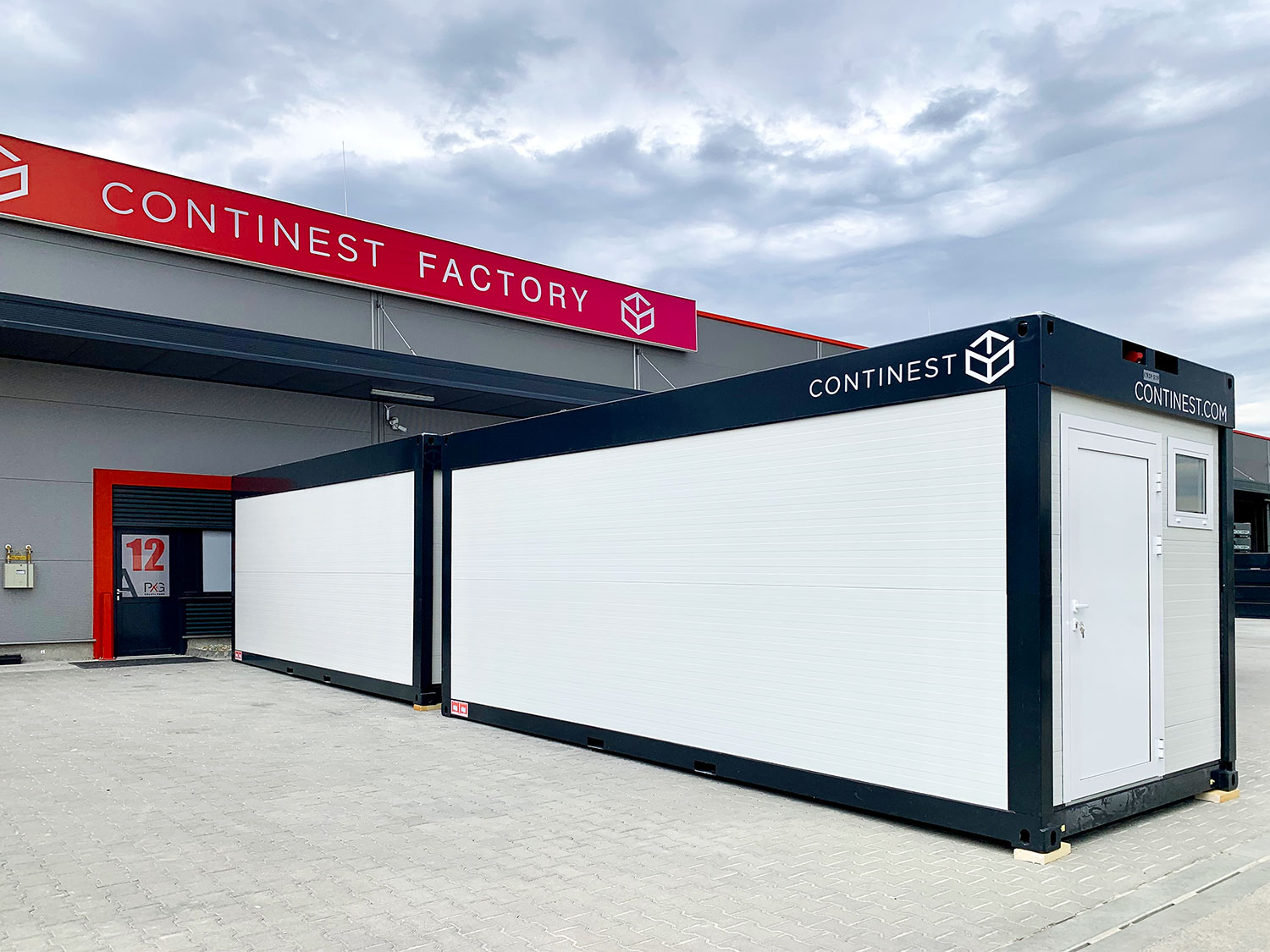

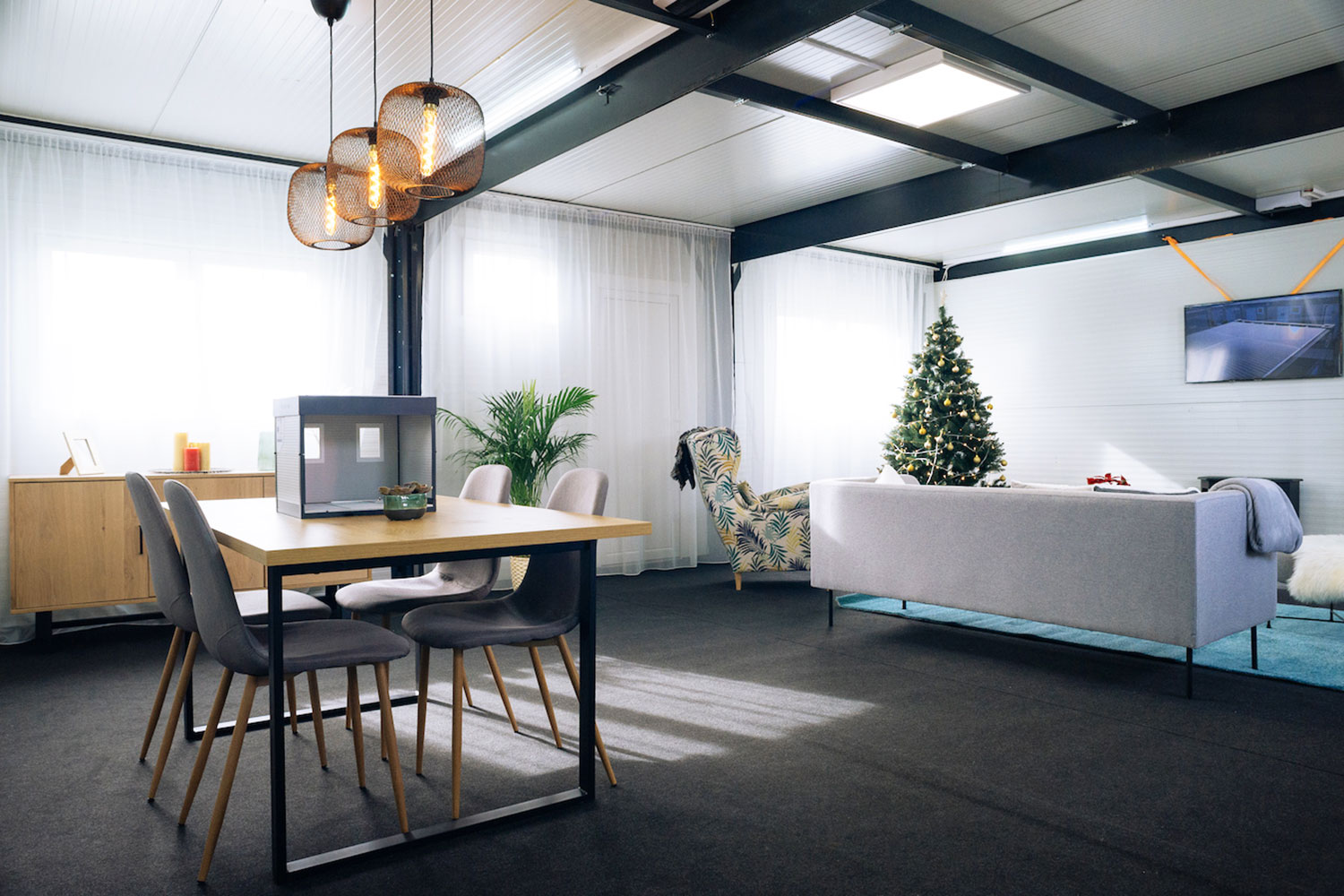

Two CN20 Standard foldable containers meet to create a new space: 2 × CN20 Standard = 1 × 30 m²
DIMENSIONSWIDTHHEIGHTLENGTH
Exterior8' 0" (2440 mm)9' 1.3" (2777 mm)20′ 0″ (6058 mm)
Interior7′ 7.1″ (2314 mm)8' 2.6" (2507 mm)19′ 1.1″ (5820 mm)

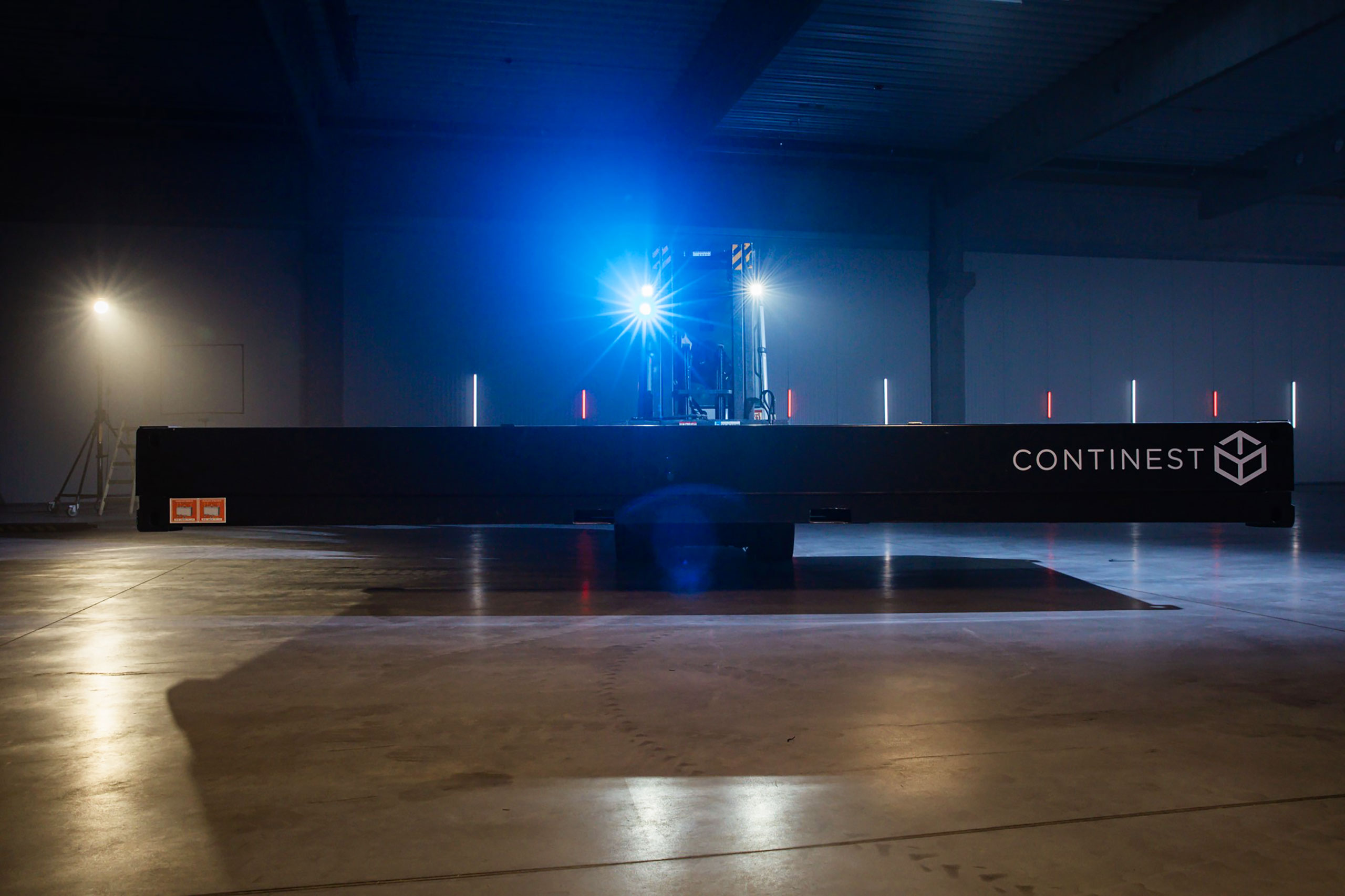

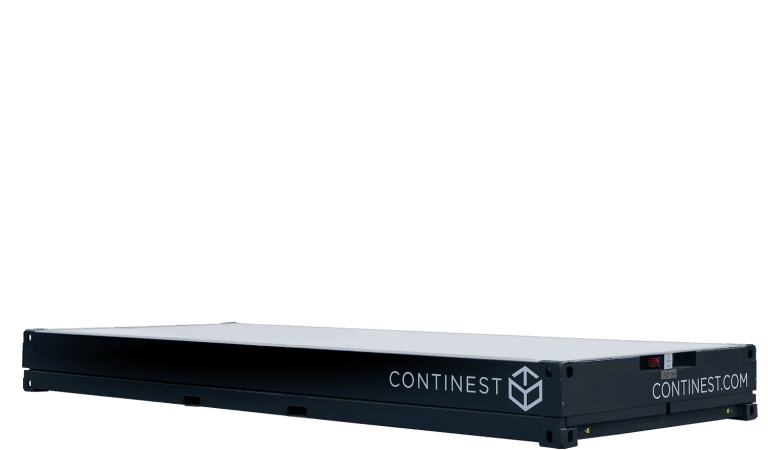

Folded8' 0" (2440 mm)1' 9.9" (555 mm)20′ 0″ (6058 mm)
DOOR3' 9" (1145 mm)6' 9.5" (2070 mm)
AC WINDOW2' 0" (620 mm)1' 8.5" (520 mm)
SIMPLE TILT & OPEN WINDOW1' 10" (555 mm)2' 7.7" (805 mm)
WEIGHT
1750 kg3858 lb
CN20 STANDARD

Logistical advantages

10 units can be loaded on a standard trailer

Decreases the logistics as well administrative costs (e.g., entrance permits) by 80% due to its stackability in folded position

Decreases the space needed for warehousing by 80%

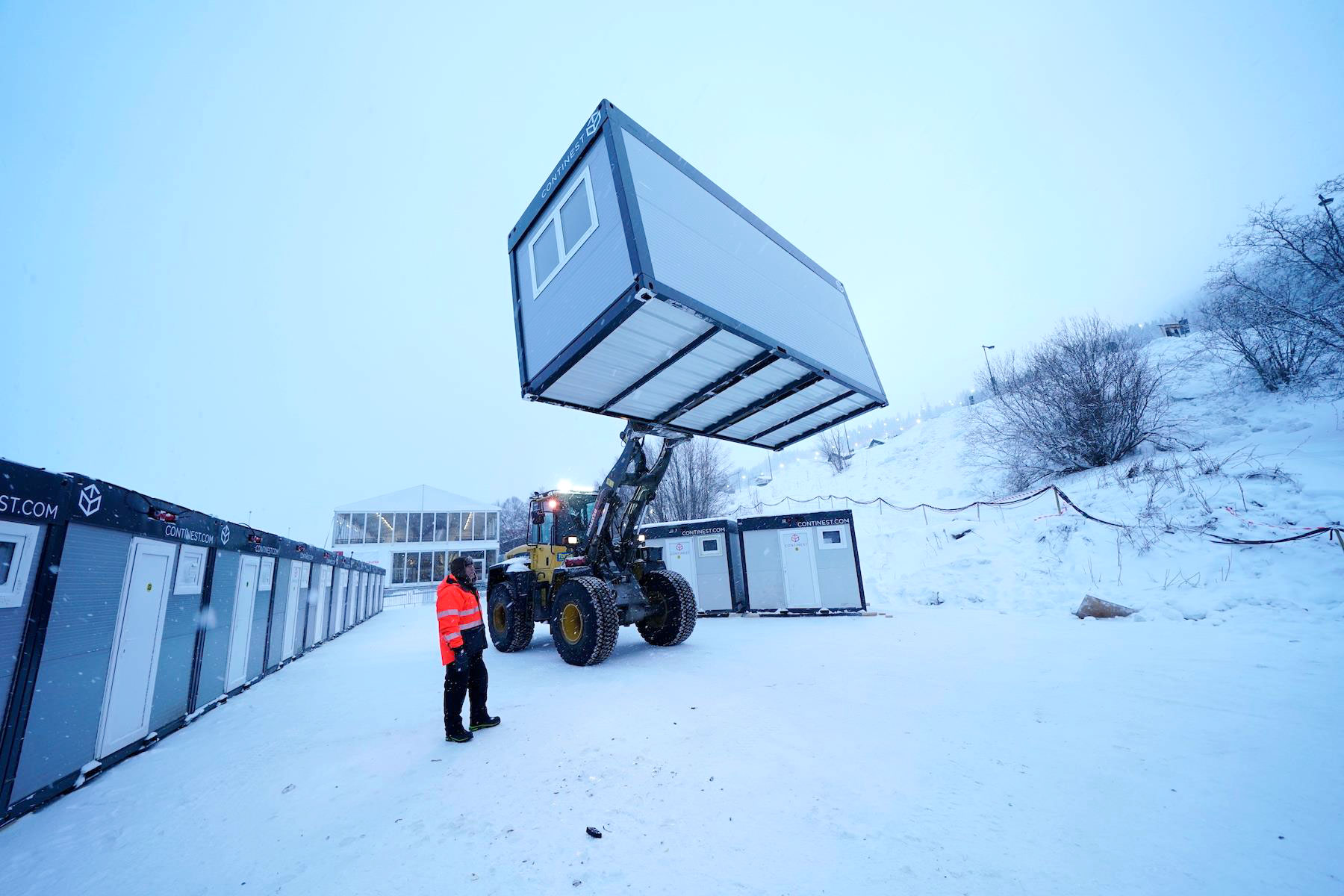

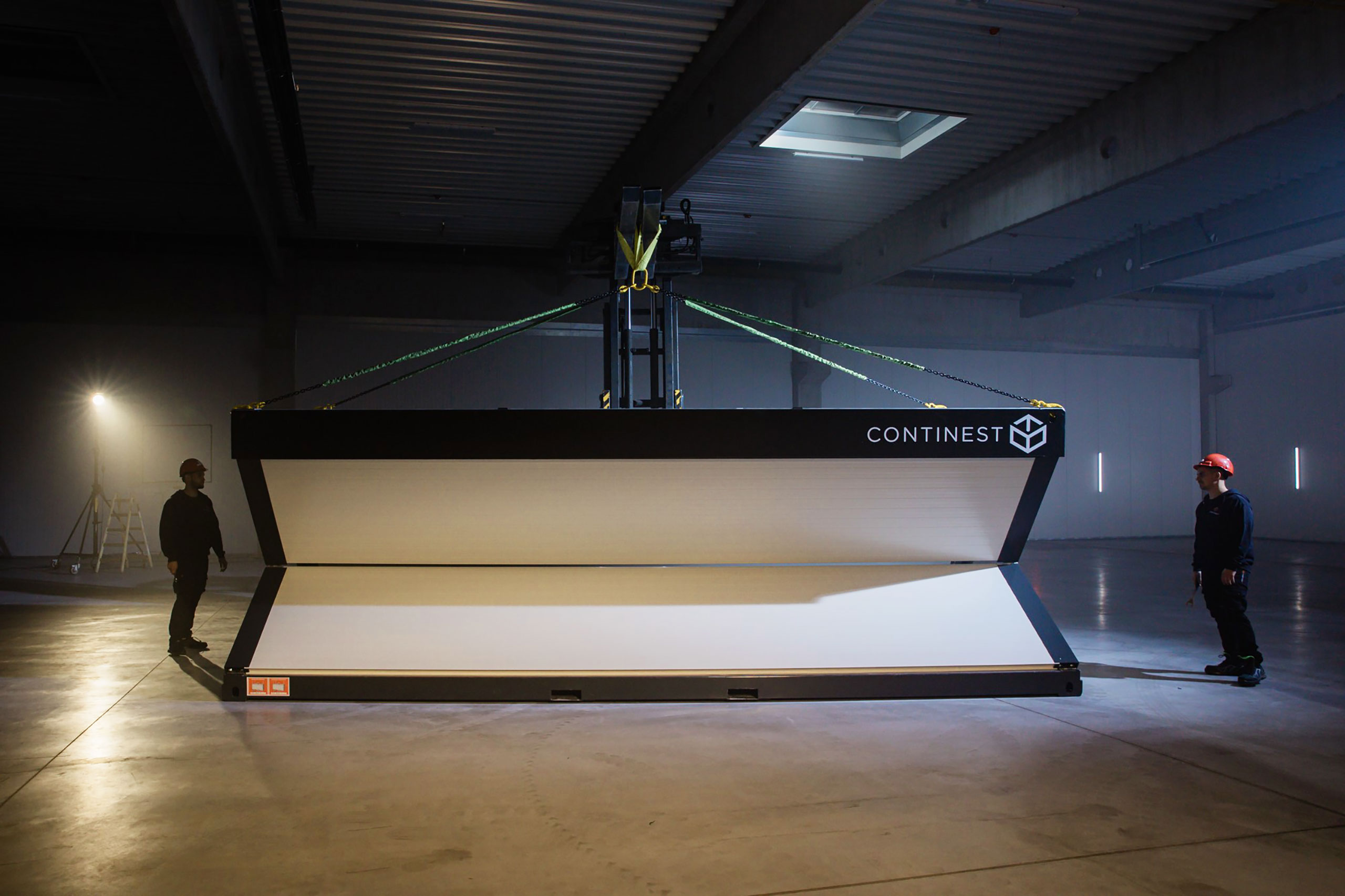

One machine for on and off loading, set-up and tear down (forklift, telehandler, crane)

CN20 STANDARD

Operational advantages

Quick

Set-up and teardown take only 5-10 minutes on a leveled surface, done by 1 crew + 1 operator

Safe

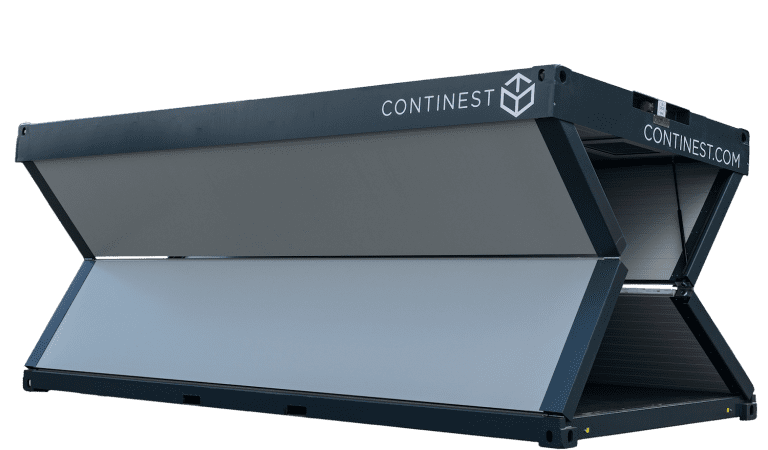

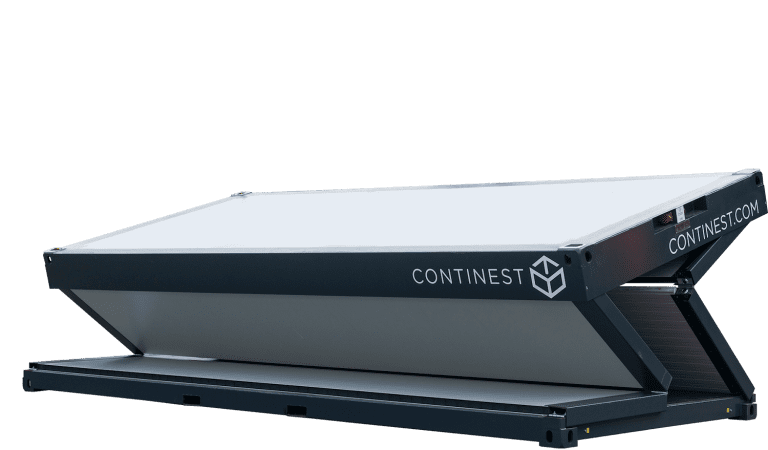

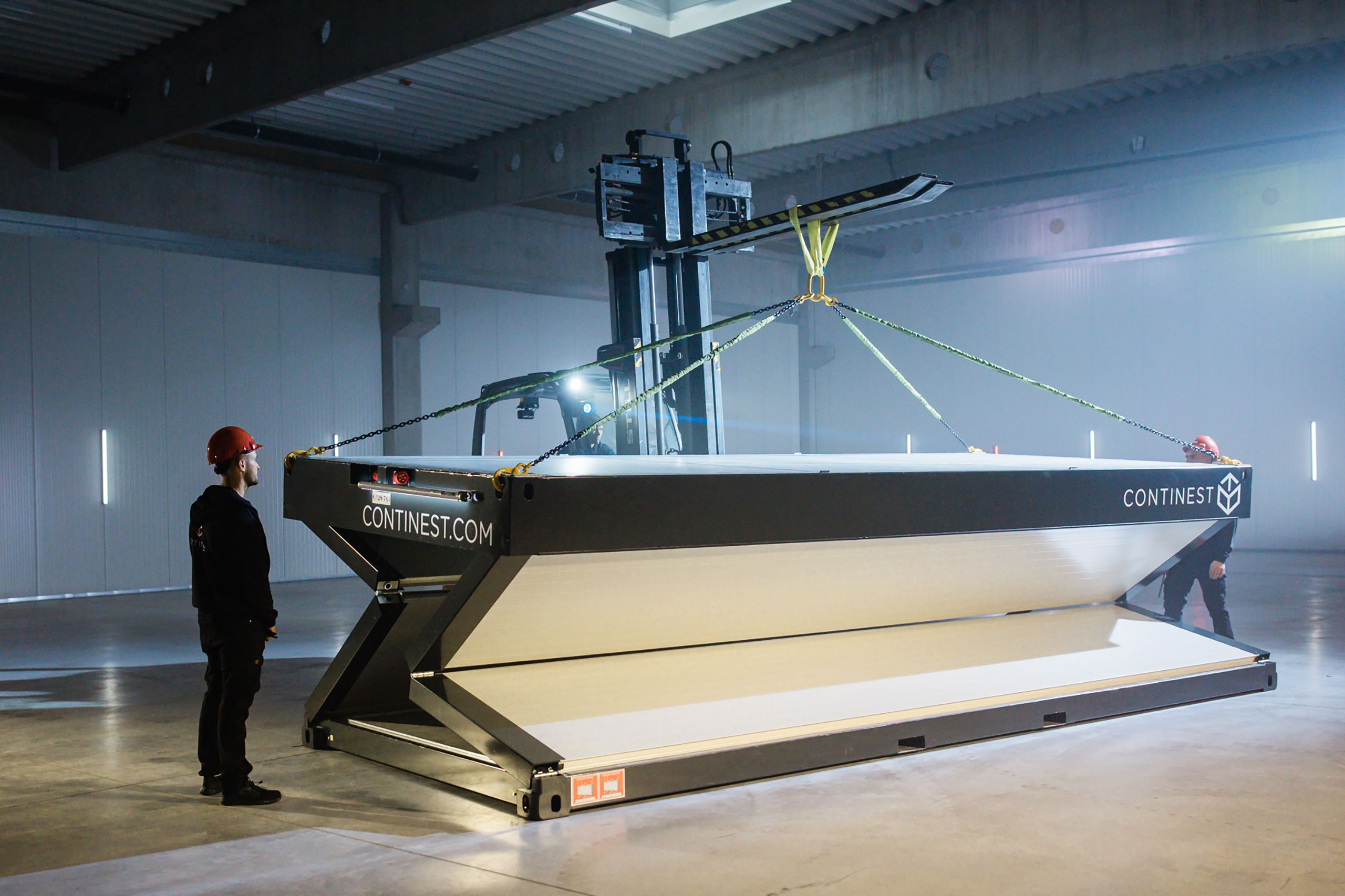

The patented hinge mechanism ensures the unit stays securely open until you intend to fold it with the proper tools

High comfort

Panels are insulated and optional AC and heating units can be installed

Multifunctional

Accomodation, office, first aid, storage, or any other purpose

Mobile, scalable, modular

Easier to move into position when site access is limited

Ready to drastically slash your logistics expenses and carbon footprint, all while maintaining top-notch quality, safety and comfort?

Inquire with us now to discover how!
