CN SU10 (Solar)

All technical, logistical and operational characteristics are identical with the 10′ Standard model, except or additionally the ones listed below.

  • WEIGHT
    • 1000 kg
  • SOLAR PV CHARACTERISTICS

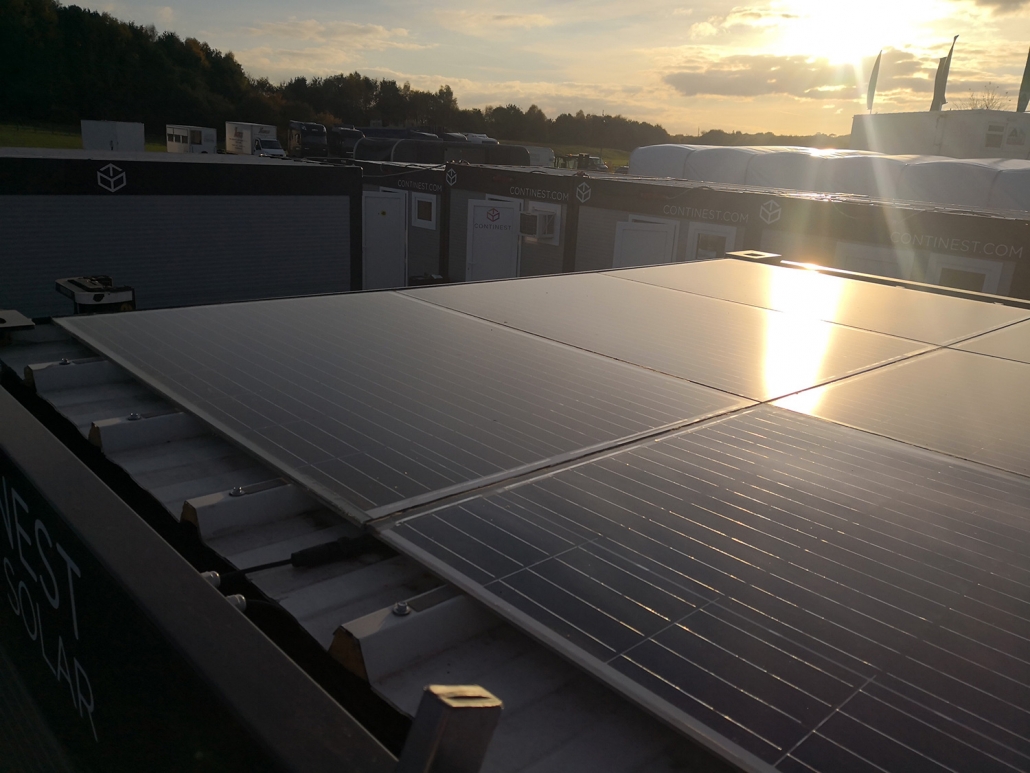

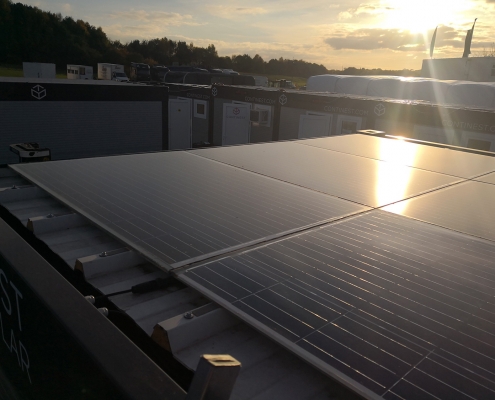

    • 6 pack ultra-rugged glass-glass walkable solar panel
    • 950 W PV nominal performance with polycrystalline technology
    • Max PV output up to 1010 W
    • Antireflection coating
    • Prismatic and ultra-clear top glass
    • High efficiency poly- and monocrystalline system also available
  • ENERGY OUTPUT
    • 240 V 50 Hz full sinus
    • Continuous power at 25–40 °C 1000/850 W
    • Peak power 2200 W
  • STANDARDS
    • Safety EN-IEC 60335-1; EN-IEC 62109-1
    • EMC EN 55014-1; EN 55014-2;
    • EC 61000-6-1; IEC 61000-6-2;
    • IEC 61000-6-3
    • Automotive Directive ECE R10-4
  • BATTERY CAPACITY

    Industrial lithium cell with high energy density, made on the safe LiFePO4 technology. Can be recharged at any state of discharge – no memory effect. LiFePO4 is a very safe technology, no spontaneous combustion, does not react with moisture or with oxygen.

    • Capacity 100 Ah
    • Operation voltage 22,4–29,2 V
    • Operating temperature -20–55 °C
    • Optional outer battery pack 100–800 Ah
  • LOGISTICAL ADVANTAGES
    • Eliminates the need of power generators
    • Eliminates the need of fuel storage and supply
  • OPERATIONAL ADVANTAGES
    • ”Stealth mode” due to zero noise emission during operation
    • Hybrid system with built in intelligent command unit for grid or off grid mode
    • The solar panel and inverter system can be optimized for specific climate areas
    • Additional power banks can be provided next to the built-in battery capacity to ensure higher and/or longer energy output

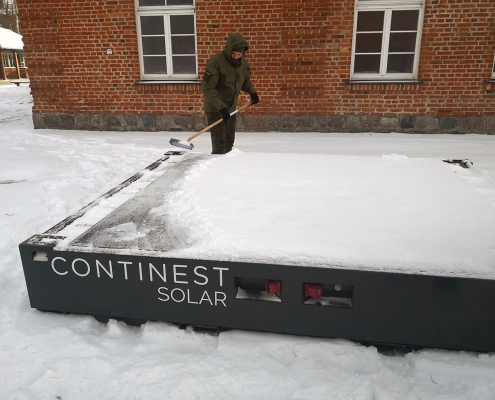

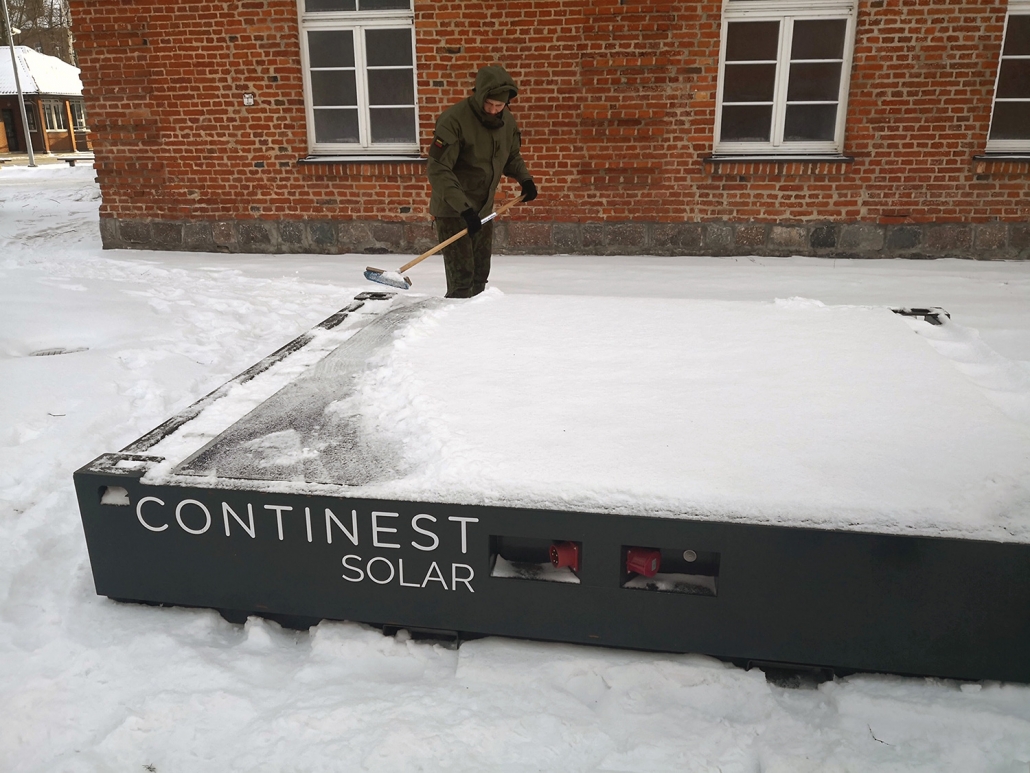

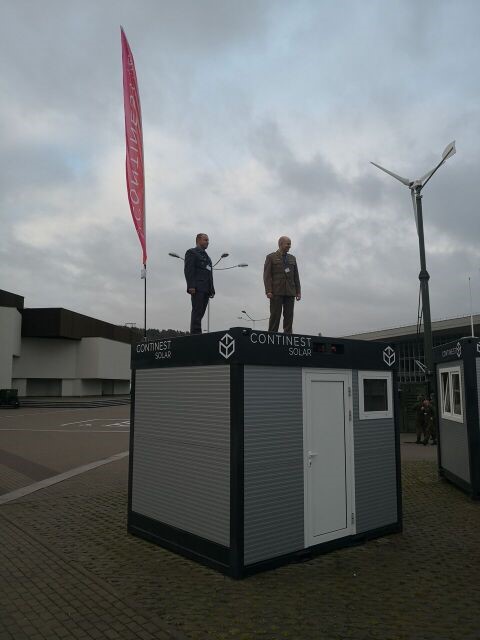

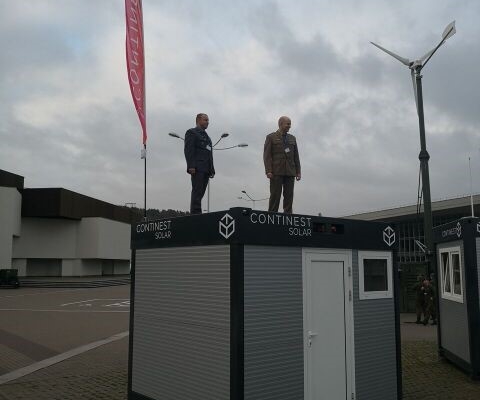

    • Ultra-rugged glass-glass walkable solar panel which resist physical impact
    • Remote monitoring and control of the solar and battery system either via Bluetooth (20 m range accessibility) or web (global accessibility)
  • R&D
    • Developing vertical solar surfaces on the side panels and solar sun-blinds for higher power generation capacity
    • Increasing the energy storage capacity by installing a battery pack in the flooring
    • ”Stealth mode” improvement by using camouflage panels
    • Developing AC system compatible with the solar energy resources
