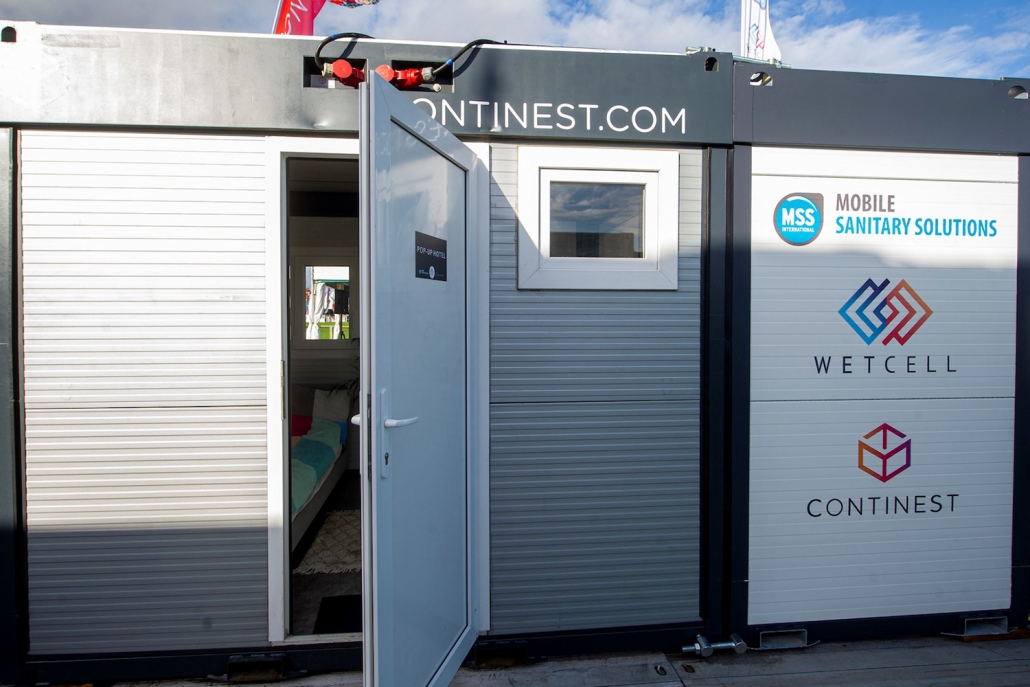

The WETCELL

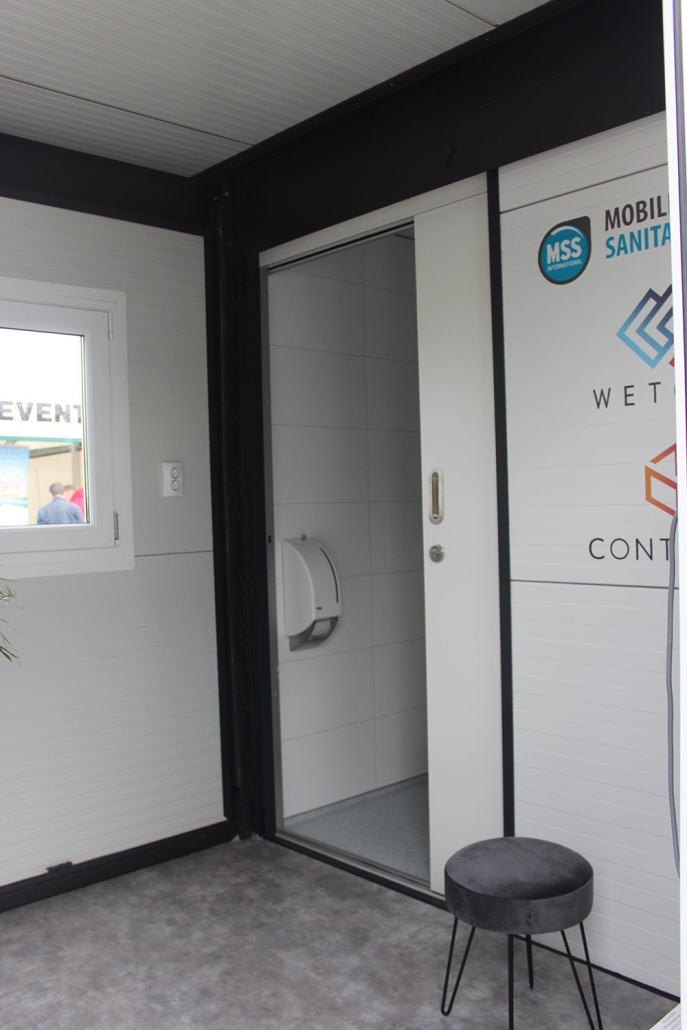

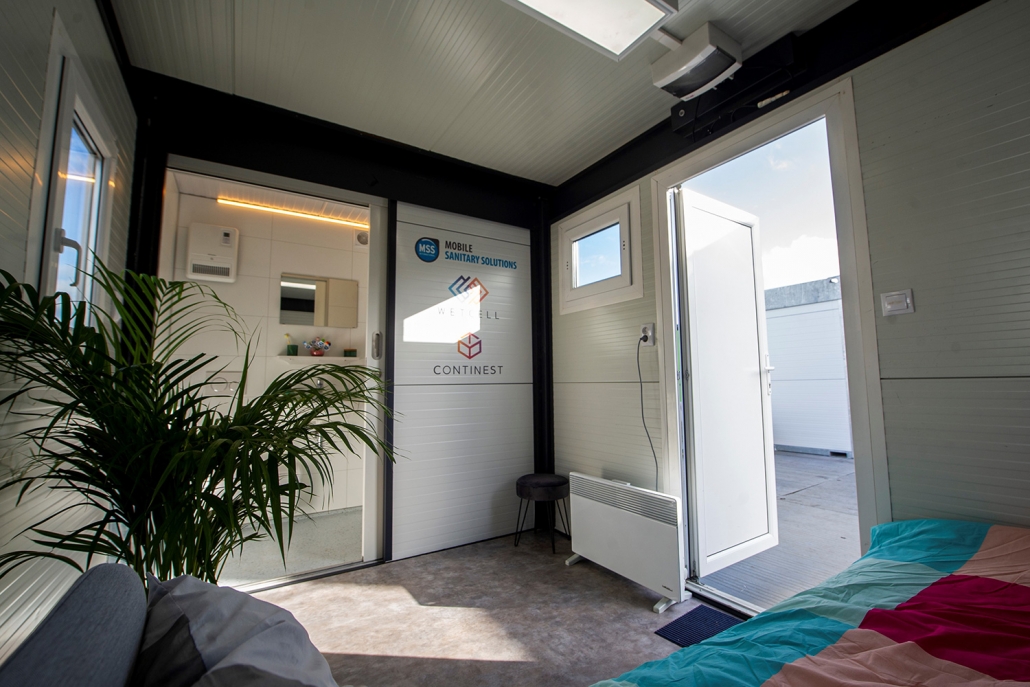

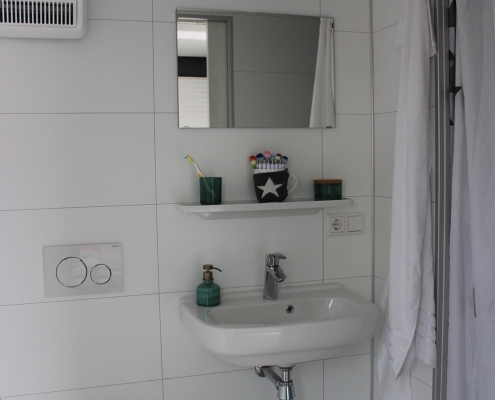

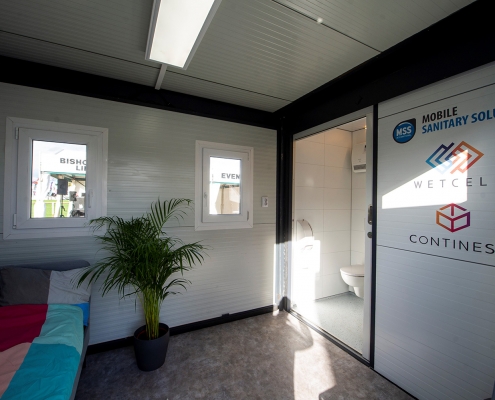

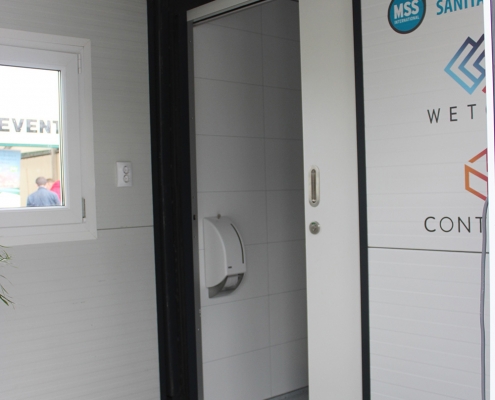

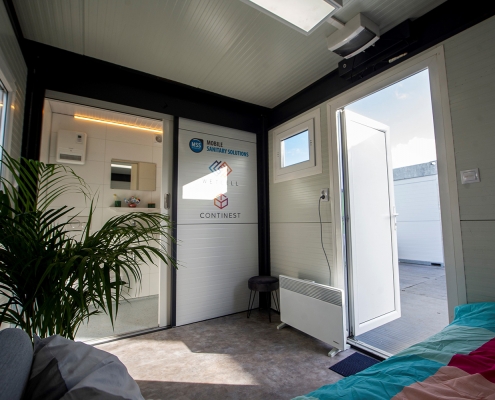

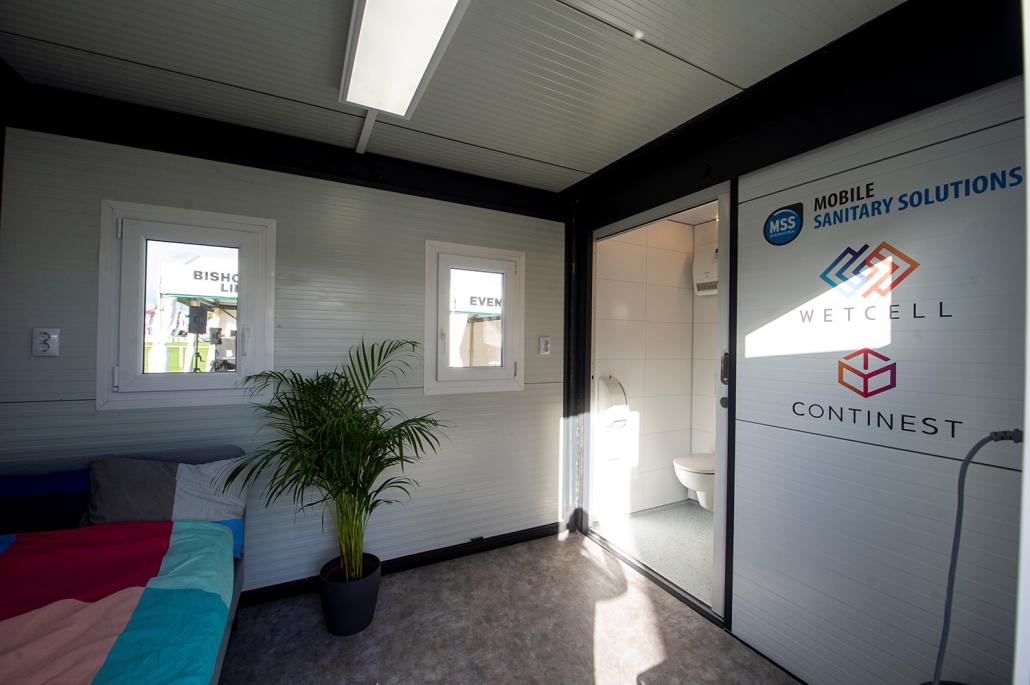

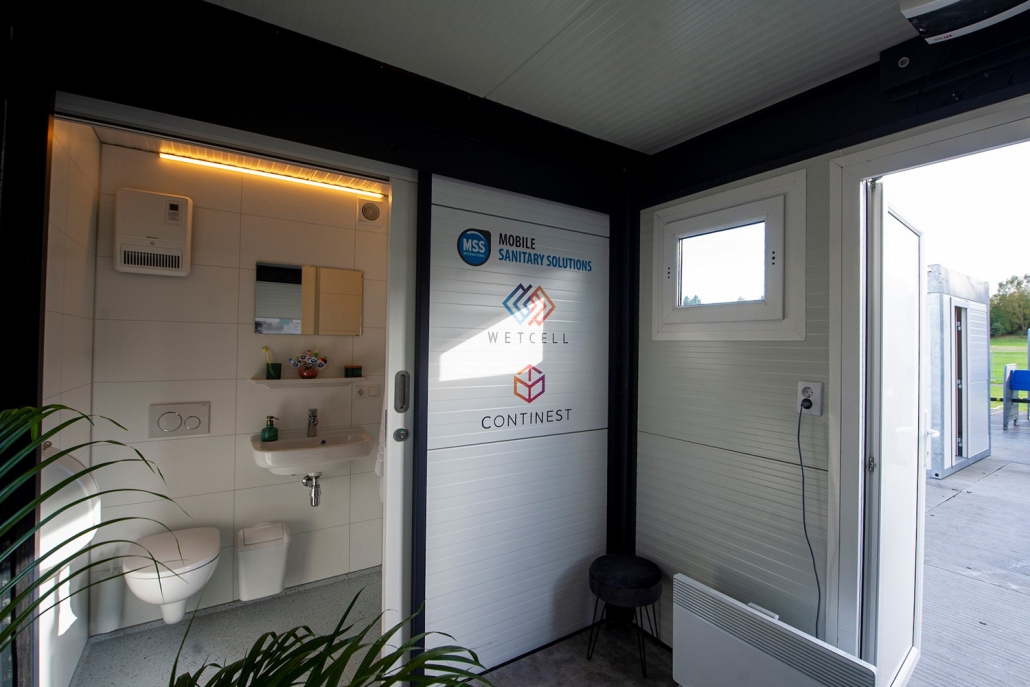

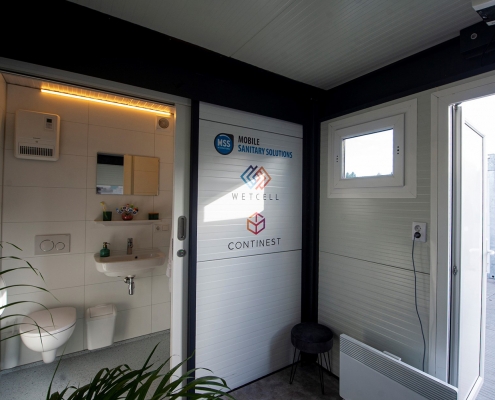

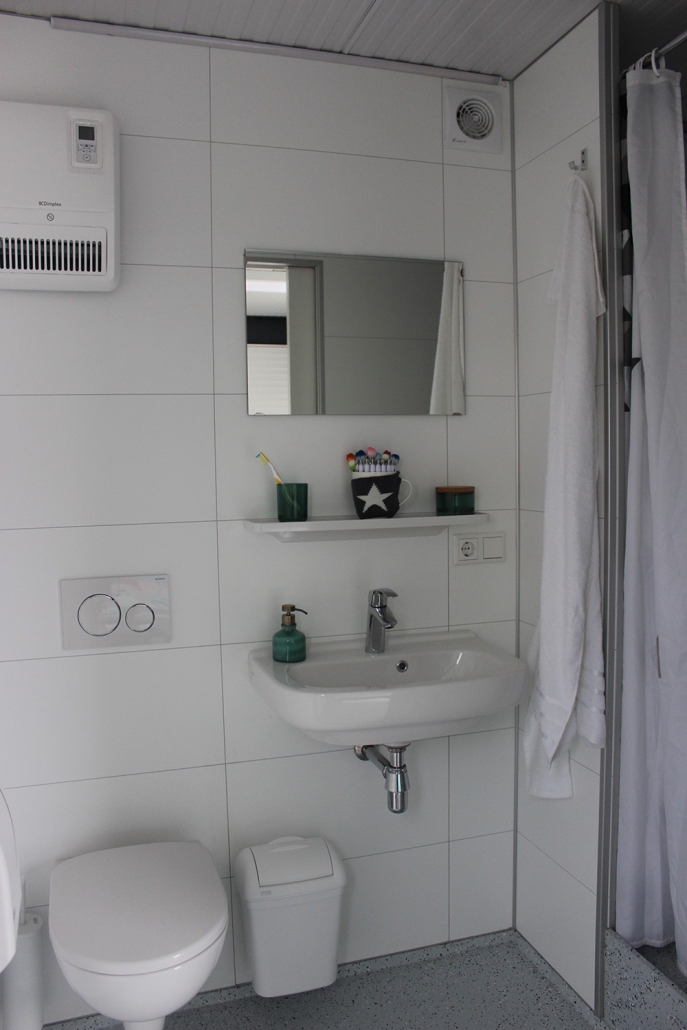

Designed and produced by MSS International, in close cooperation with Continest. A WETCELL is equipped with a regular flush toilet, a sink and a shower. Furthermore, the WETCELL comes with a heater for a nice and warm unit as well as with a tankless water heaterto make sure that there is 24/7 warm and comfortable water available for the shower (and the sink).

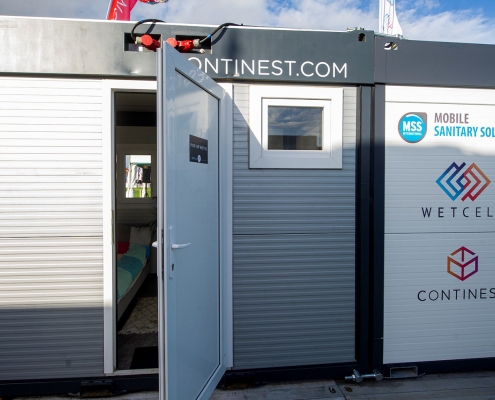

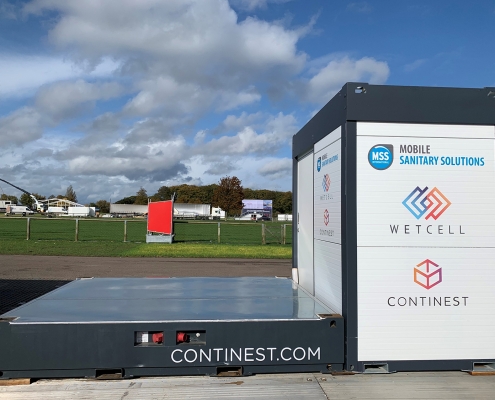

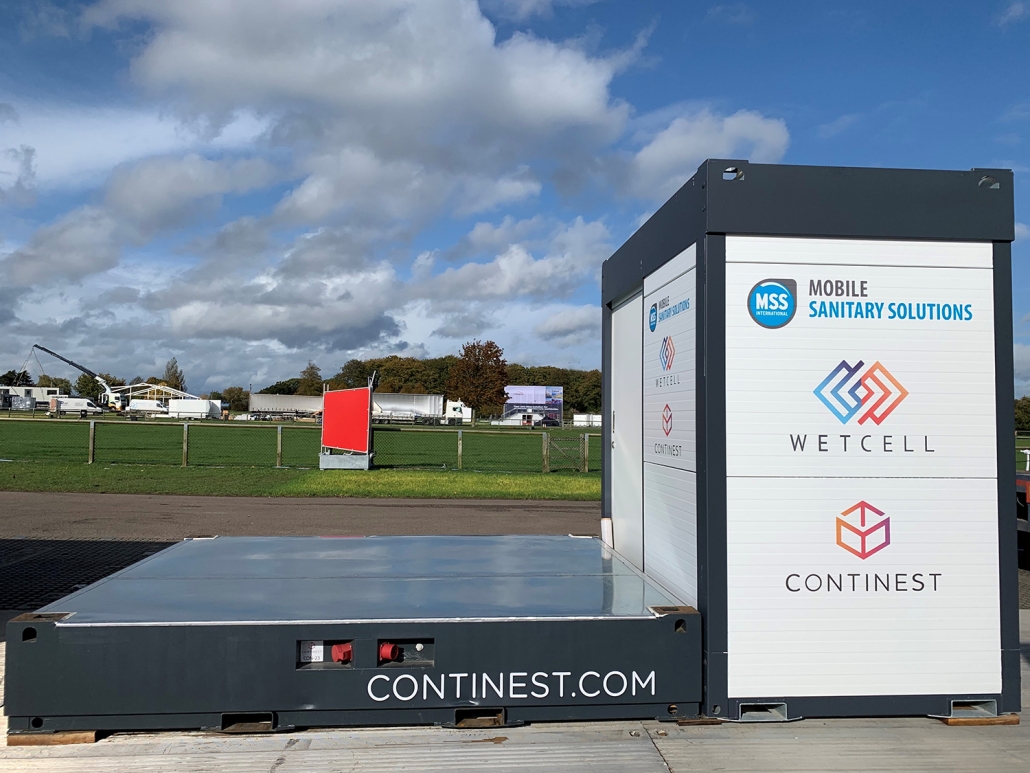

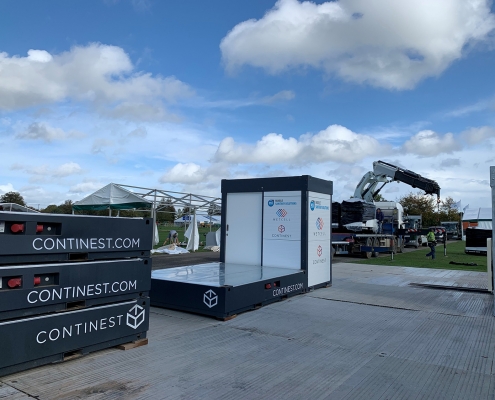

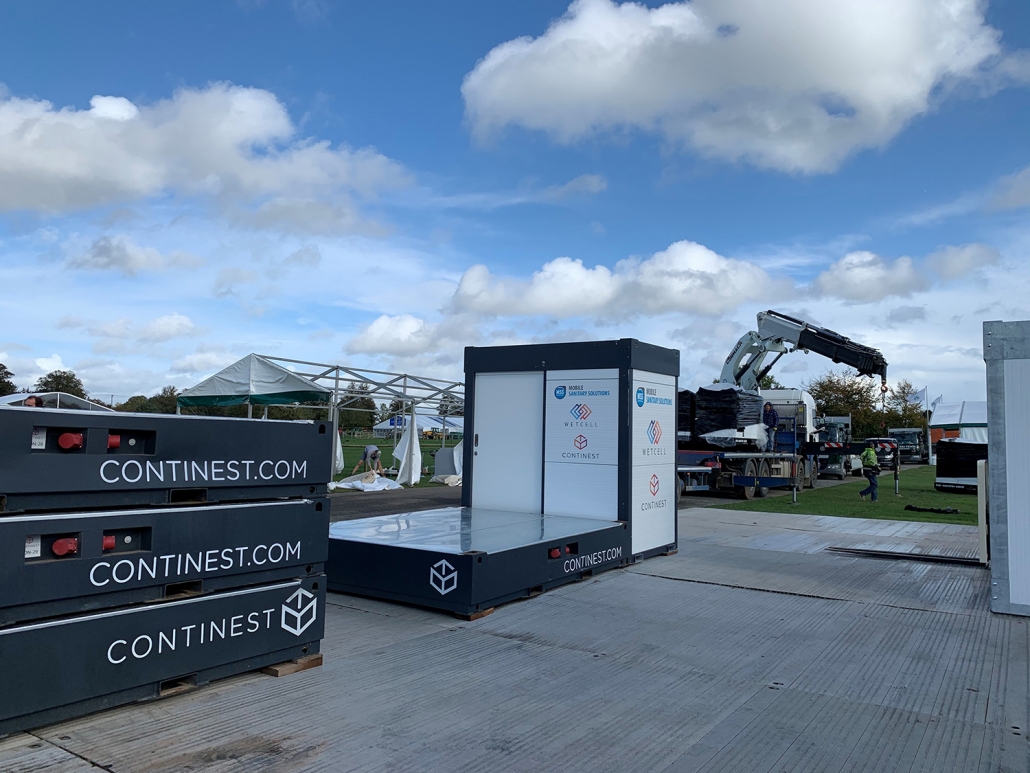

The WETCELL can be connected to a foldable container from Continest, both the CN10 and CN20. Especially when CN10 or CN20 containers are interconnected the WETCELL is a perfect supplement to the CN10 and/or CN20. The WETCELL can be applied also as a stand-alone unit.

  • MEASUREMENTS
    • Outside dimensions: 2440×1503 mm
    • Inside dimensions: 2340×1403 mm, depending on the panels to be applied by customer wishes
    • Weight: depending on the use of material: 1040 kg

    Can be transported on a truck with 9 units and therefore suitable for approx.
    500 – 800 people depending on circumstances and customers wishes.

  • EACH WETCELL NEEDS THE FOLLOWING CONNECTIONS TO OPERATE
    • Water connection: ¾ GK connection, 3.5 Bar
    • Power connection: 12 kVa/380 V/32 Amp
      This is due to the tankless water heater. A heater with a boiler can be applied and will use less power but does not perform as good as a tankless water heater. Depending on the customer wishes, this can be adjusted.
    • Waste connection: 110 mm Ø (Camlock as an option). All connections are fitted inside the unit.
  • WATER CONSUMPTION

    Toilet, sink and shower use water but all are equipped with water-saving material. Depending on customer wishes, units can be equipped with vacuum systems, saving more water and preventing the production of wastewater.

  • TAILOR-MADE SOLUTION

    Depending on customer wishes, it is possible to apply standardized connections on water and waste,used in that country. Colours scheme, even branding, can be applied; The WETCELL can be supplied with solar panels and ballistic panels in close cooperation with Continest.

    WETCELLS can be hoisted by a crane;
    WETCELLS can be stacked in a warehouse.
