BW3+ (NIJ 0101.04 III+)

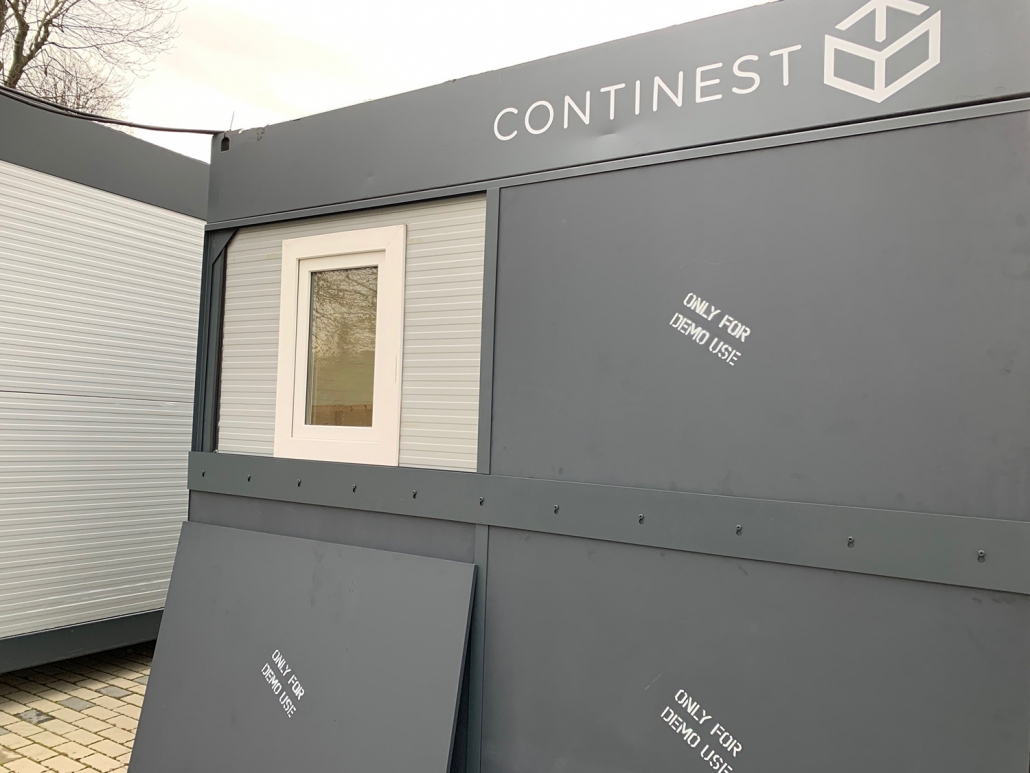

CN BW (Ballistic Wall)

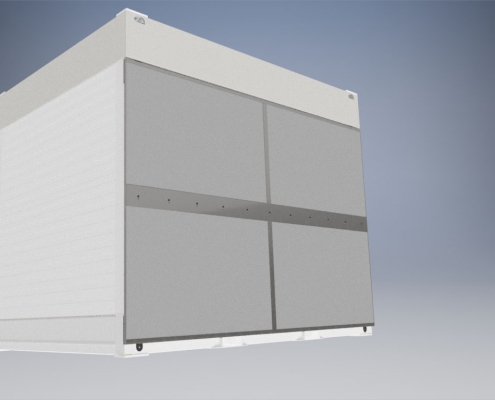

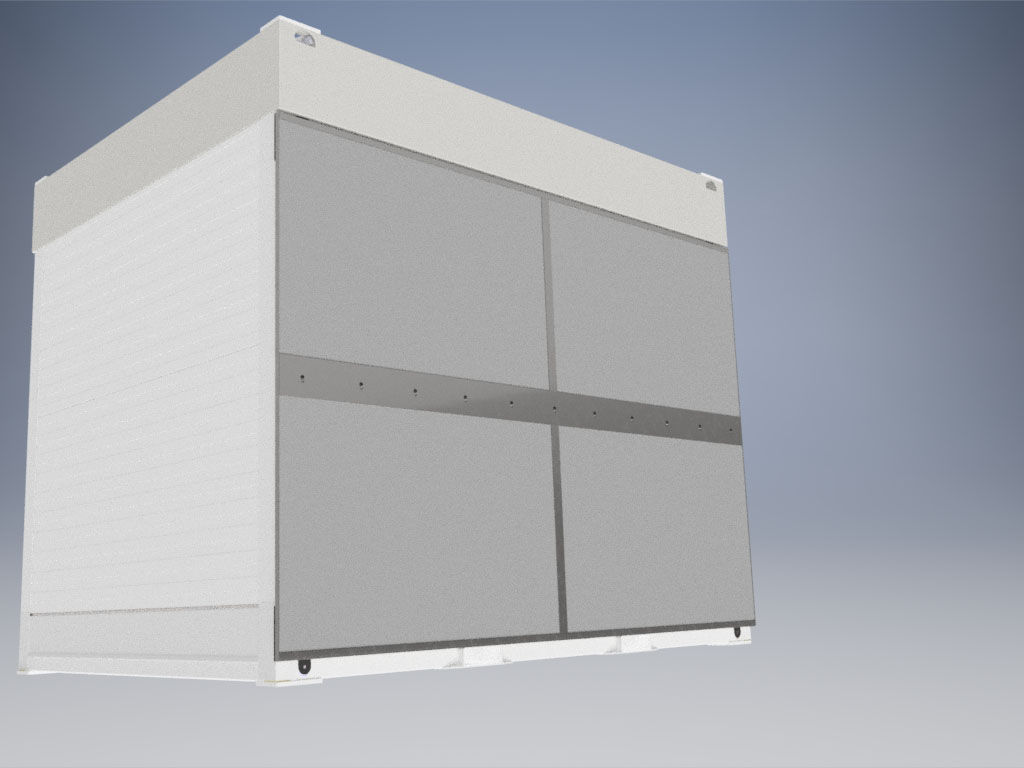

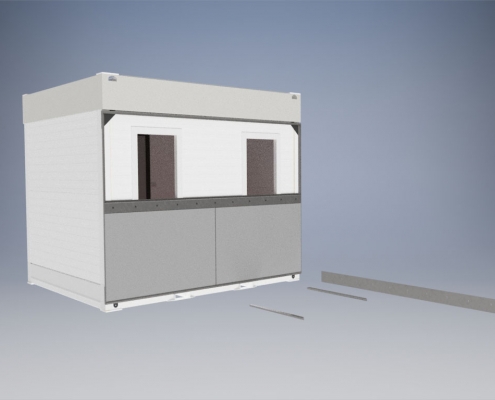

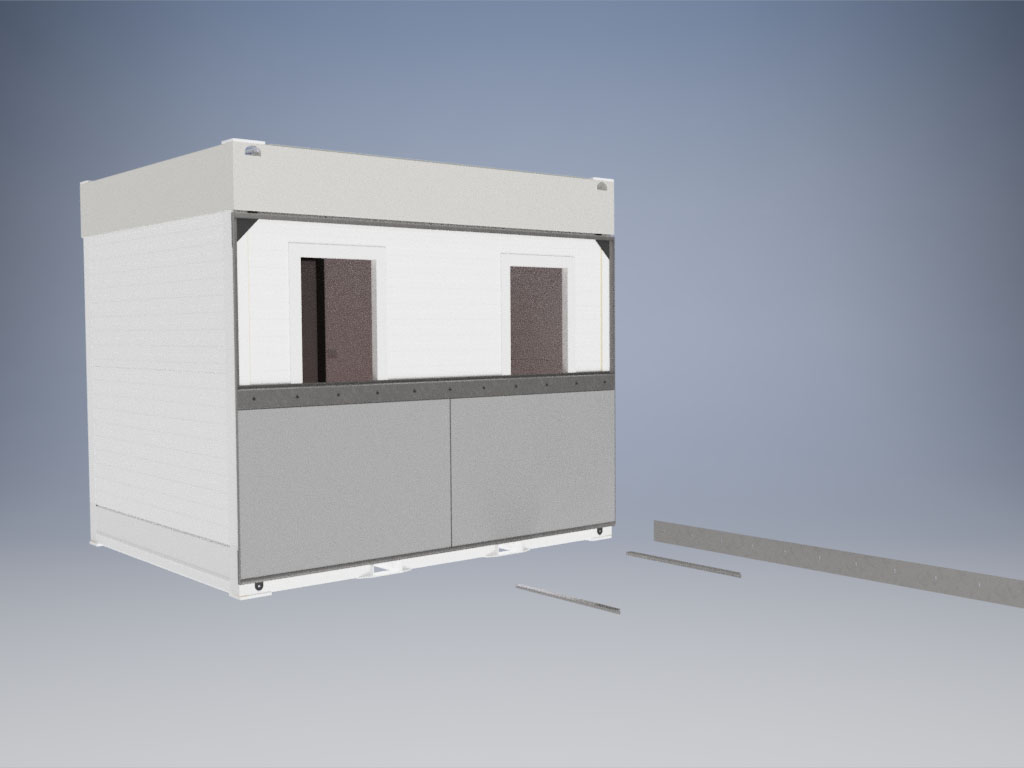

The BW can be customized to the standard size of both the CN10 and CN20 units. Standard frame height of the BW is 200 cm, which can be adjusted, depending on customer request.

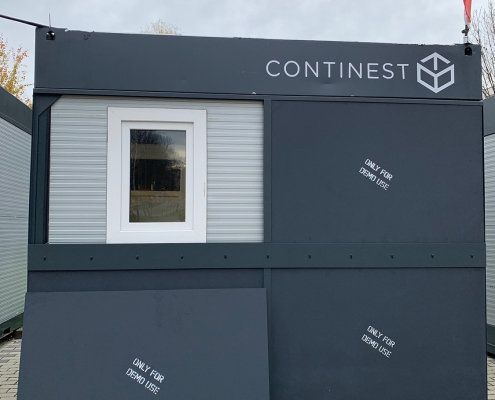

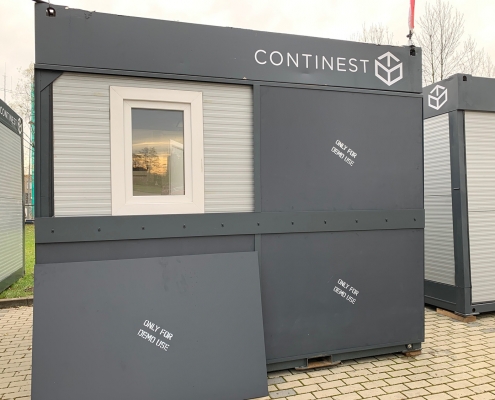

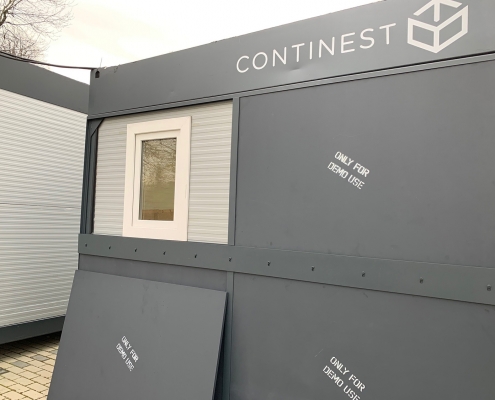

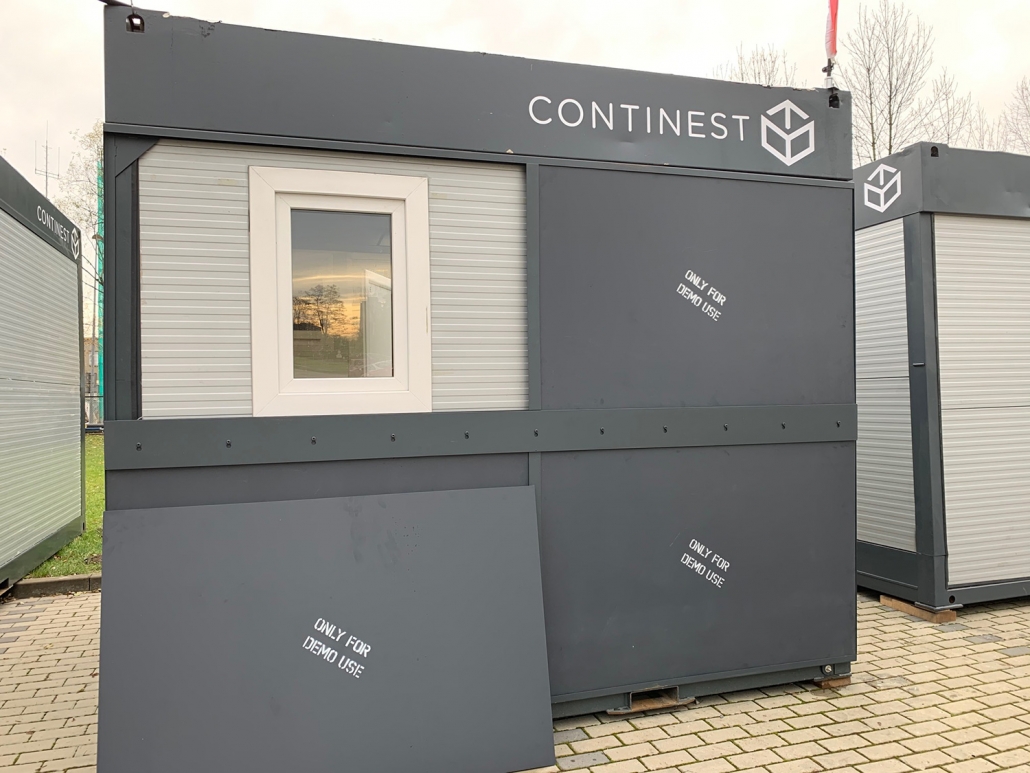

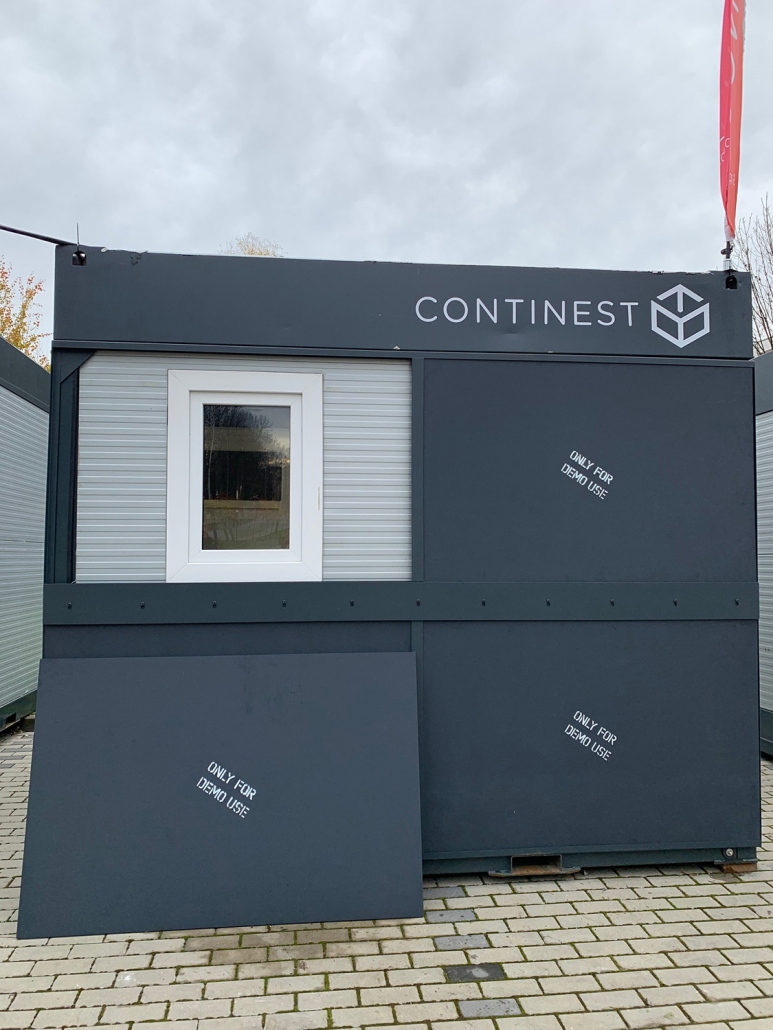

The BW was developed with the aim to provide protection to the on field personnel, while optimizing weight, thickness and cost. The system can be implemented on site,on those sides of the units which are exposed to threat. Connection of the BW to the CN units is quick and simple.
Type | Weight (kg/m²) | Thickness (mm) | Max. dimension (mm) | Material | Protection level | V50 FSP 17 gr (m/s) (STANAG 2920) | Final use |
---|---|---|---|---|---|---|---|

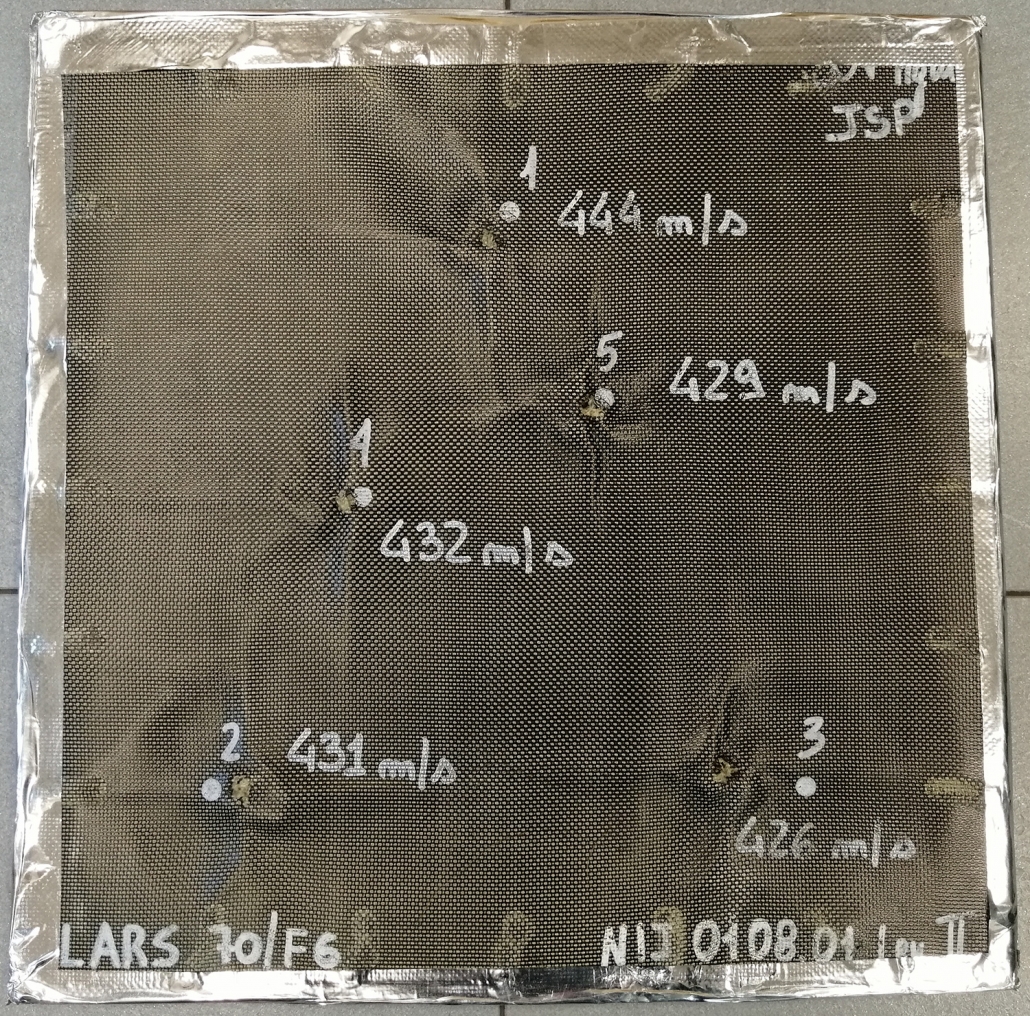

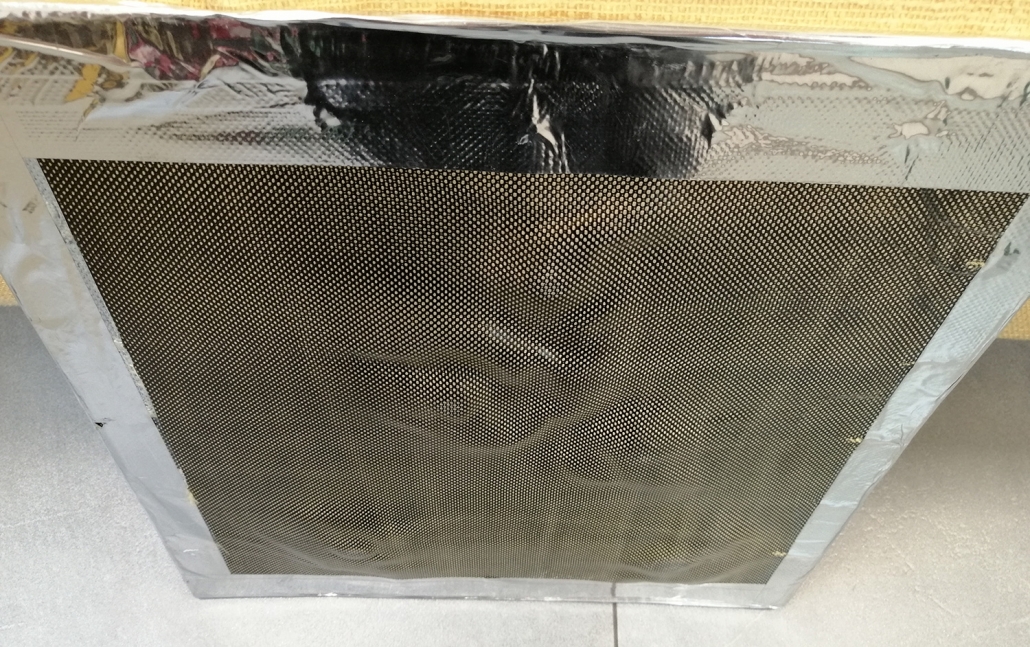

LARS 80/F6 | 8,3 | 7 | 2200×1300 | Aramid+Thermoplastic | NIJ 0108.01-IIIA | 580 | Spall Liner |

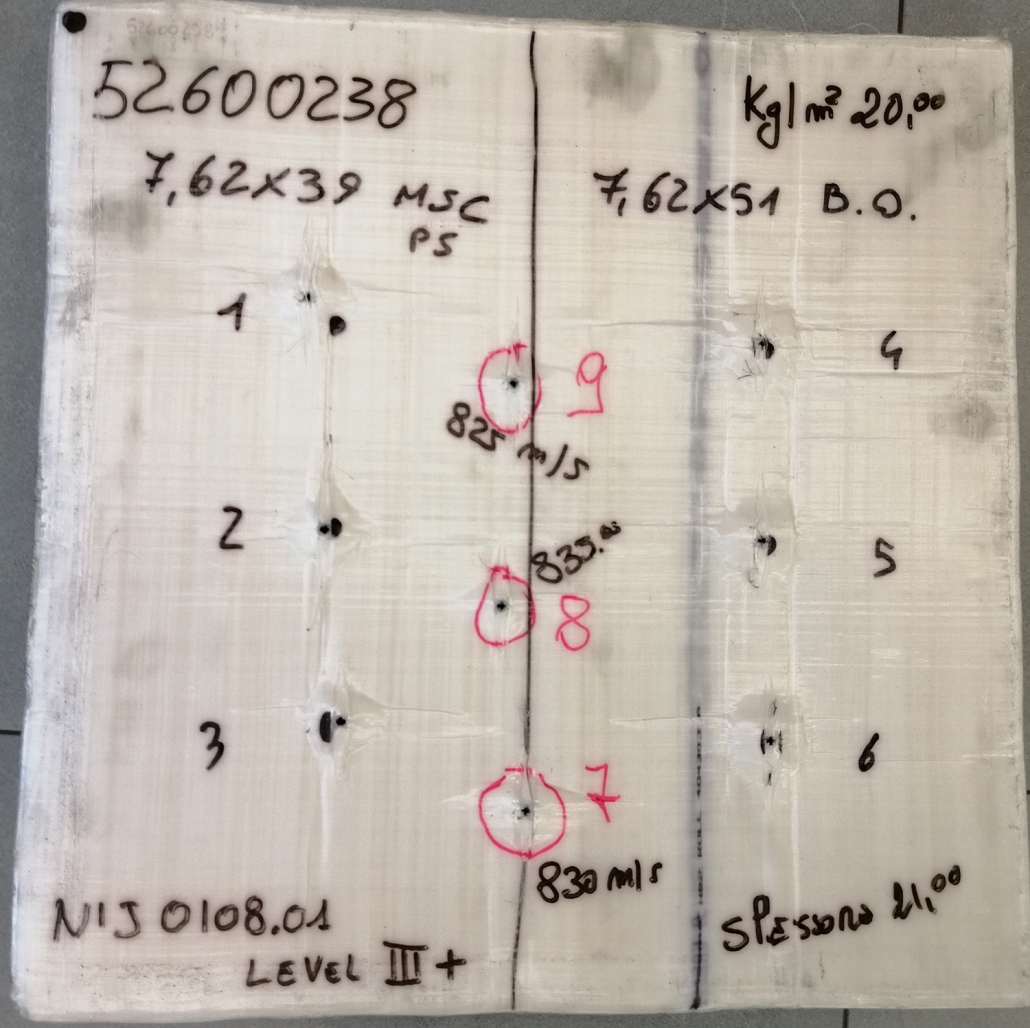

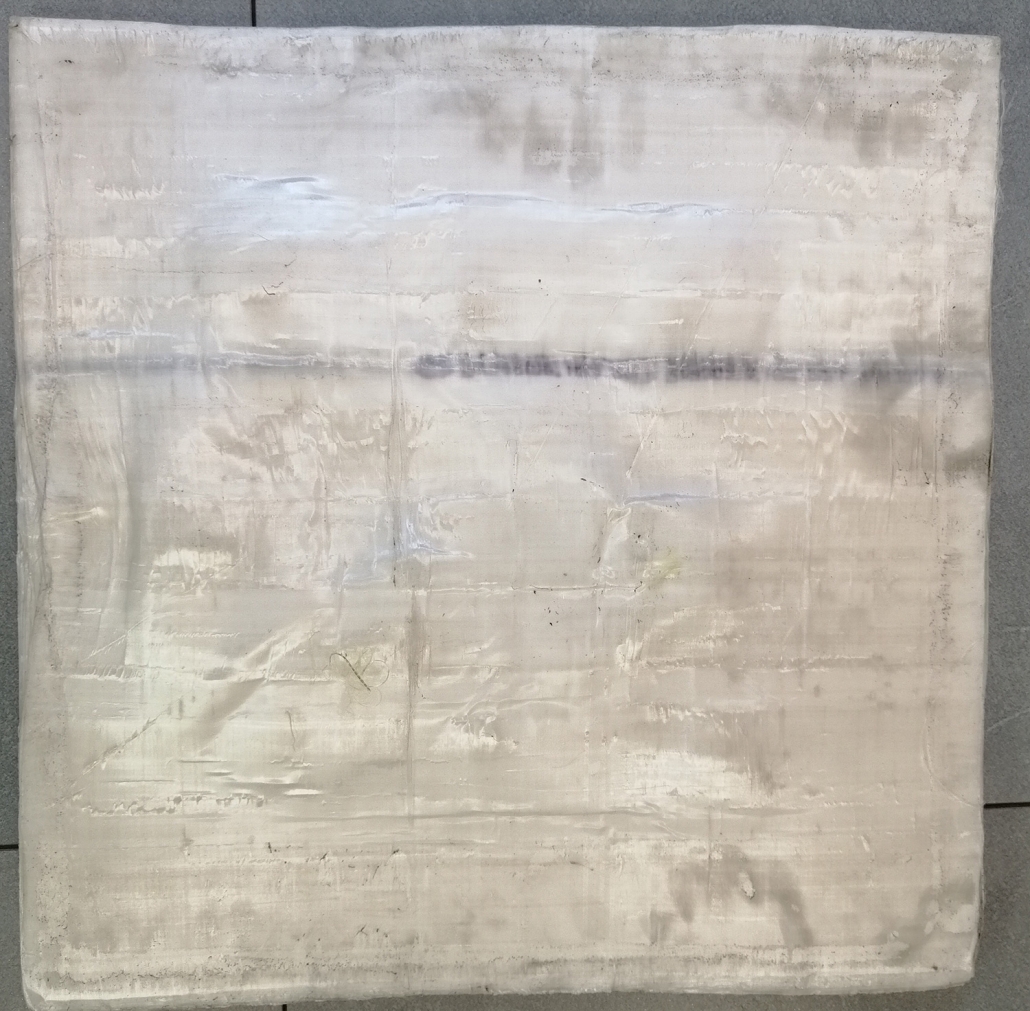

LARS HPPE/20 | 20,0 | 22 | 1600×1000 | UHMWPE | NIJ 0101.04-III+ | 900 | Armouring Vehicles |

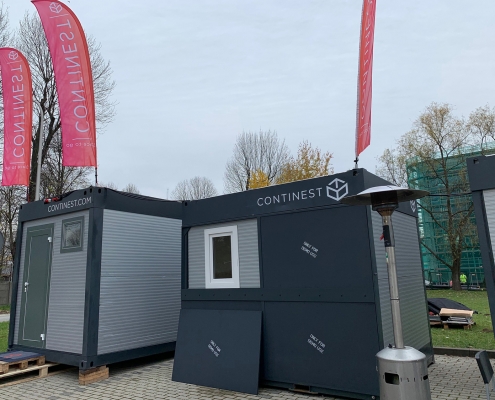

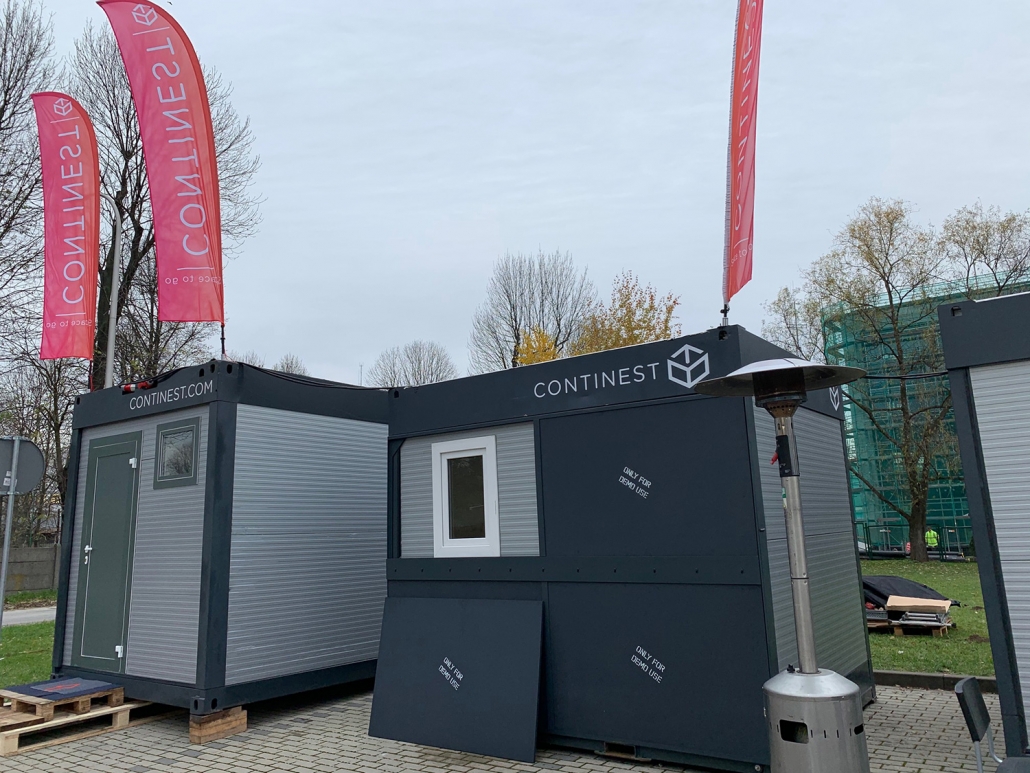

CN Deployable Checkpoint
Deployable multifunctional & modular solution
Can be easily deployed and setted up in any climate and risk environment.
The system can generate its own power need and provide the suitable protection level to different threat levels.
The fit out can be medical, civilian or any other function.
The units can be delivered fully equipped with surveillance systems on the checkpoint as well with perimeter protection systems.
